3-phase network analyzer TPM-01ESH - TENSE (Türkiye)
Description:
Multifunctional digital measuring device for three-phase network parameters for the precise measurement and monitoring of electrical values. It enables the monitoring of current, voltage, frequency, power, and energy with RS485 Modbus RTU communication capability.
Key features
-
Measurement of 3-phase voltage and current
-
Display of active, reactive and apparent energy (P, Q, S)
-
Display of the cosφ and power factor values of each phase
-
Measurement of the voltage and current of each phase between the phases and the neutral conductor.
-
Frequency measurement
-
Harmonic voltage and current up to the 31st harmonic
-
Total values of imported and exported active energy (ΣkWh)
-
Total inductive and capacitive reactive energy (ΣkVArh)
-
Display of minimum and maximum values, maximum requirements
-
2 relay outputs and 1 digital input
-
Event logs (voltage/current high/low, imbalance, THD-I)
-
Password-protected menu
Technical specifications
-
Communication: RS485 ModBus RTU (1200-38400 bps)
-
Connection: 3-phase voltage converter and 3-phase current transformer
-
Compatible current transformers: 60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5
-

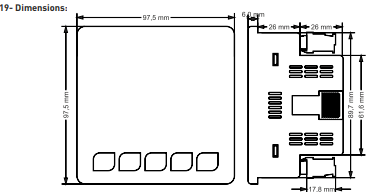

Control panel size: standard digital panel
Application
-
Monitoring of three-phase electrical networks in industrial and commercial applications
-
Monitoring of energy consumption and network quality
-
Integration into automation systems via Modbus RTU
