Bimetall-Thermostat 0-60C NC, PTHT, Plastim
- Regular price
- €9,24
- Regular price
-
- Sale price
- €9,24
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Thermostat für die Heizungssteuerung. Einstellbare Temperatur 0-60°C. Montage auf DIN-Schiene. 1xNC, Plastim Bimetall-Thermostate.
Einfacher Thermostat. 220(250) V AC. Bimetallfühler mit Typ, Heizfunktion. Elektrischer Anschluss mit 2 Klemmen 2,5 mm2. Montageart auf 35mm DIN-Schiene, Querschienen, auf Montageplatte.
Für den Anschluss von Heizelementen - Heizkörper, Flächenheizungen, Fußbodenheizungen, Heizkabel, Heizlüfter.
Eigenschaften |
PTHT |
Kontaktart |
NC |
Einstellbereich |
0-60°C |
Farbe des Potentiometers |
Rot |
250V AC / 120V AC |
10 (2)A |
Sensor-Typ |
Bimetall |
Kontakt Typ |
Schnapp-Aktion |
Lebensdauer |
> 100.000 |
Elektrischer Anschluss |
2-polige Klemme, Schraubklemmen |
Material Kunststoff |
UL94 V0 ABS Flammhemmend |
Schutzart |
IP20 |
Betriebstemperatur |
-25 / +80 °C |
Temperatur bei Lagerung |
-45/+80°C |
Einbau |
DIN-Schiene 35mm |

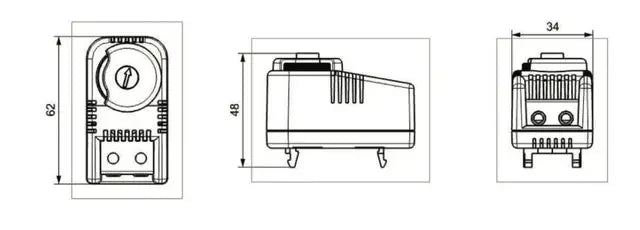

Abmessungen HxBxT |
61x34x38 mm |
Gewicht |
45g |
