Bimetal thermostat NO switching, setting range 0-60°C, PTVT
- Regular price
- €9,24
- Regular price
-
- Sale price
- €9,24
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Control cabinet thermostat (temperature relay, temperature sensor, thermo relay, air temperature relay) mechanical with built-in air temperature sensor for DIN rail mounting for connecting fans or for signaling when the set temperature is exceeded, normally an open contact (normally closed) PTVT, 2p, screw terminals, Plastim bimetallic thermostats.
These thermostats are used in systems that maintain a specific temperature using cooling elements such as fans or air conditioners. These systems are used to prevent overheating of equipment in electrical cabinets, ATMs, payment terminals, and other devices installed outdoors or in uncooled rooms.

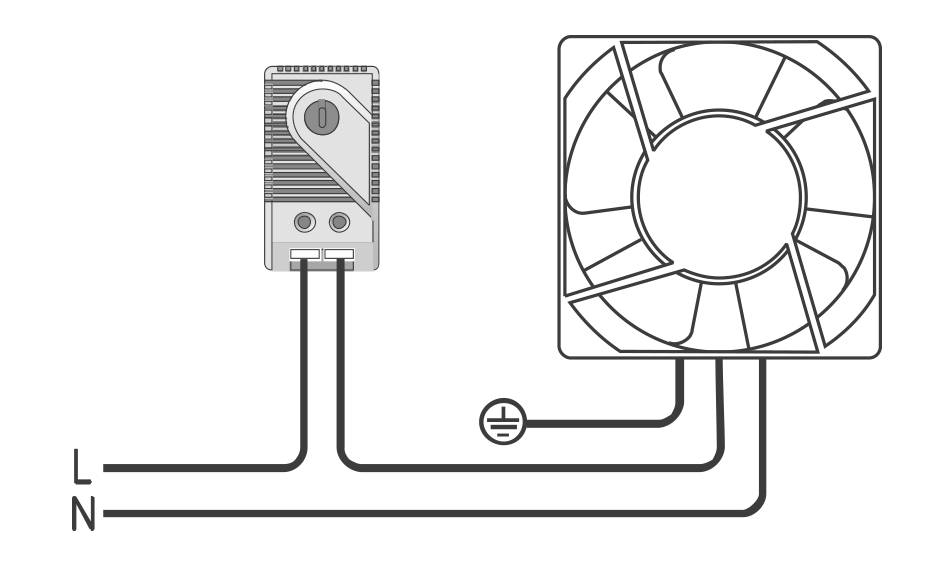

They are used to connect fans, coolers and air conditioners.
Features |
PTHT |
Contact type |
LOCKER |
Adjustment range |
0-60°C |
Potentiometer color |
Blue |
250V AC / 120V AC |
15 (2) A |
Sensor type |
Bimetal |
Contact type |
Snap action |
life |
> 100,000 |
Electrical connection |
2-pole terminal, screw terminals |
Material: Plastic |
UL94 V0 ABS Flame Retardant |
Protection class |
IP20 |
Operating temperature |
-25 / +80 °C |
|
Storage temperature |
-45 /+80°C |
Installation |
DIN rail 35mm |
Dimensions (H x W x D) |
61x34x38 mm |
Weight |
45g |
