Roof fan, switch cabinet fan, 560m3/h, 230VAC, 364x364x107mm, IP54, PTS5500
- Regular price
- €332,76
- Regular price
-
- Sale price
- €332,76
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

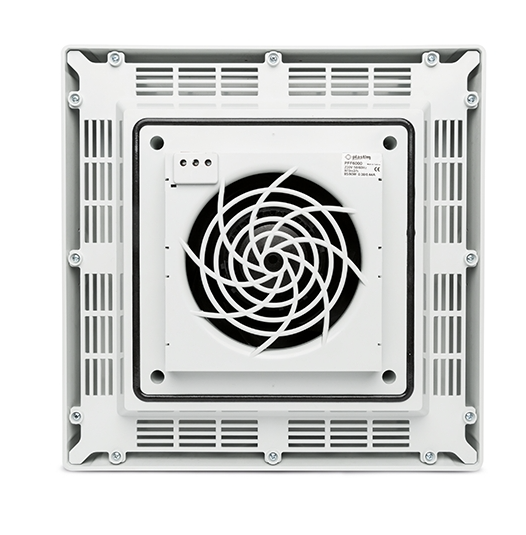

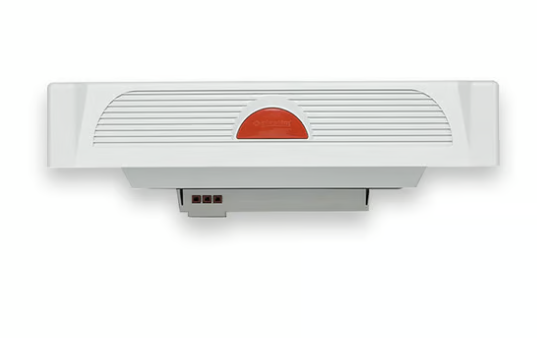

Housing-mounted fan for installation on the roof of the control cabinet, PTS5500, PLASTIM (Turkey)
This fan is designed for use in a microclimate system within a distribution board or automation control panel and is typically used with a PTVT or PTHVT thermostat. It is installed on the top of the control cabinet and allows excess warm air to be extracted from the cabinet volume as efficiently as possible.
Although the fans have the same dimensions, they differ in the amount of air they deliver and in the noise level.

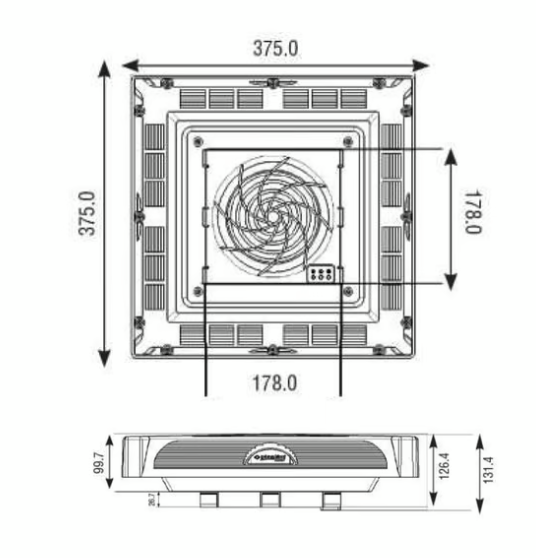

- External dimensions: 364x364x107 mm
- Installation dimensions: 178x178mm
- Volume flow: 560 m³/h
- Noise level: 62 (64) dB(A)
- Bearings: Ball bearings
- Lifespan: 50,000 hours
- Operating voltage: 220-230VAC, 50/60Hz
- Current consumption: 0.26/0.34 A
- Rated power: 58/75 W
- Electrical connection: 3-pole terminal 2.5 mm²
- Direction of airflow: The airflow is directed from the inside to the outside.
- Operating temperature: -10/+70 °C
- Protection rating: IP54
- Plastic material: UL94 V0 ABS flame retardant
- Seal: Polyurethane seal
- Colour: RAL 7035
- Weight: 3.16 kg
- Assembly: Quick and easy attachment
For automatic air exchange and temperature control with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller. Both devices are available on our website.
