DJ-V96T Panel Mount Three-Phase Digital Voltmeter for AC
- Regular price
- €49,00
- Regular price
-
- Sale price
- €49,00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty
Three-phase digital panel meter TENSE DJ-V96T
Product description:
The DJ-V96T digital panel voltage meter is designed for simultaneous measurement of voltage across three AC phases . It can monitor both phase-to-neutral (LN) and phase-to-phase (LL) voltages and also displays the phase sequence . The display mode is selected using the SELECT button on the front panel.
Operating principle:
-

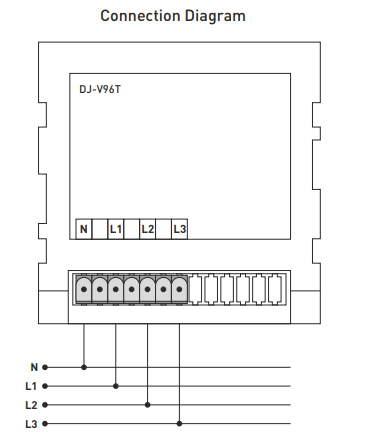

Displays the voltage at inputs L1, L2, L3 when the power supply is switched on.
-
Pressing the SELECT button switches the display to the phase voltages L12, L23, L31 and then to the phase sequence .
-
Displaying L1, L2, L3 from top to bottom shows the correct phase sequence; displaying L1, L3, L2 shows the incorrect phase sequence.
Technical data:
| parameter | Value |
|---|---|
| Operating voltage (Un) | 140-300 VAC |
| Operating frequency | 50/60 Hz |
| Power consumption | <4 VA |
| Operating temperature | -20 °C ... +55 °C |
| Measurement accuracy | ±1% |
| Measuring range LN | 5-300 V AC (min. 140 V at L1) |
| Measuring range LL | 5-500 V AC |
| Advertisement | 3x3 digits, height 14 mm |
| Dimensions of the mounting opening | 91×91 mm |
| Connection type | Plug-in connection |
| Weight | ≤300 g |
| Operating altitude | <2000 m |
| Cable diameter | 1.5 mm² |
| Installation | On the front panel |
Application:
-
Voltage monitoring in three-phase electrical distribution systems
-
Monitoring of the phase sequence
-
LN and LL voltage monitoring in industrial and residential buildings
Advantages:
-
Clear and accurate display of the voltage on all phases
-
Easy switching between display modes
-
Quick installation in a standard panel (91×91 mm)
