Air conditioner for control panels / cooler 3550W PAD3550.01
- Regular price
- €3.113,44
- Regular price
-
- Sale price
- €3.113,44
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Instructions
- Payment methods
- Warranty

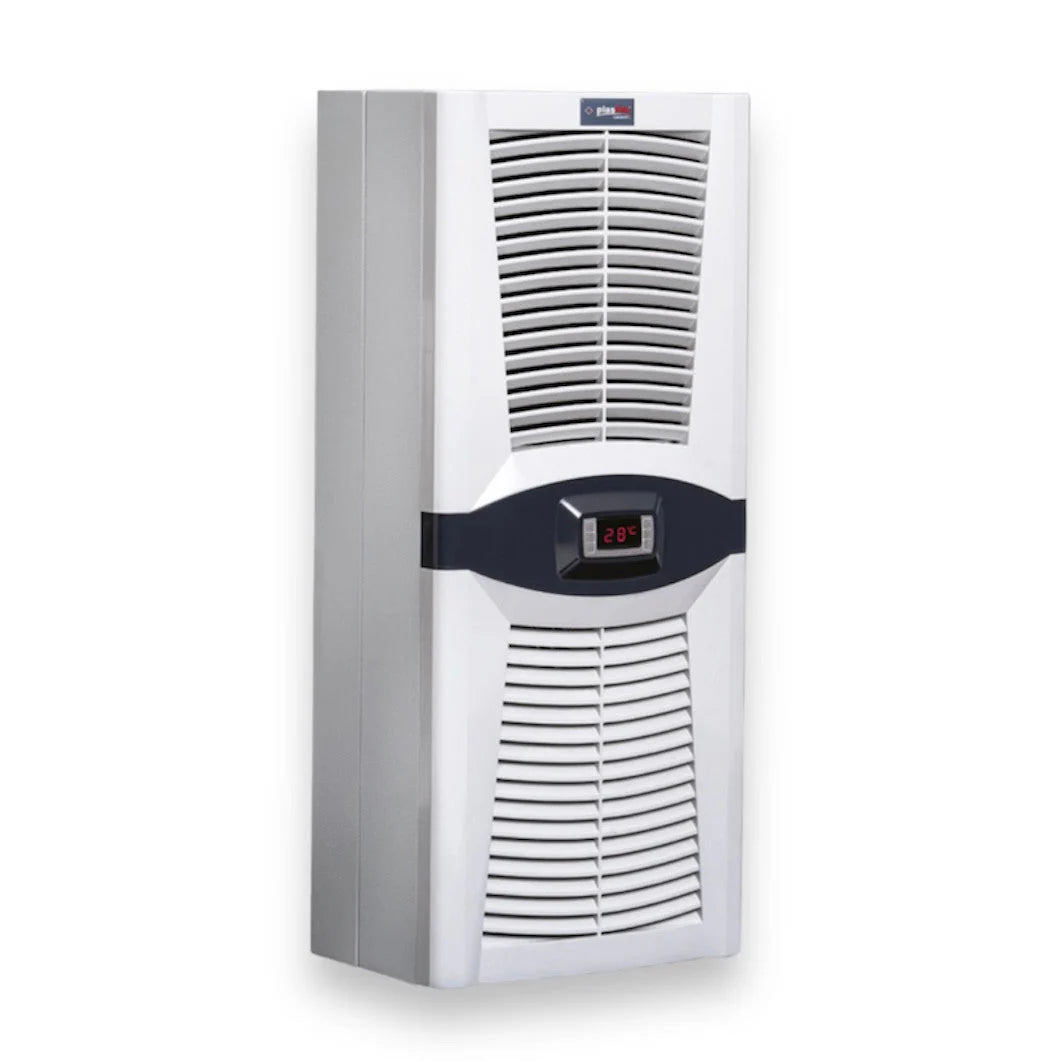

"Design Series" air conditioner for switchboards / chiller 3500 watts for switchboards and automation systems for side or wall mounting.
The PAD3550.01 (PLASTIM) control panel air conditioner features HIGHLY's state-of-the-art open rotary compressor, a Dixell thermostat, a condensate evaporator and a limit switch to control the control cabinet door opening.
Everything needed for installing the air conditioner in the control cabinet is included in the delivery - seals, drain pipe, mounting screws, power connection.
TECHNICAL DATA |
PAD3550.01 |
Cooling capacity L35 / L35 |
3500W / 11970BTU |
Operating voltage |
230VAC |
frequency |
50/60 Hz |
Starting current |
11A |
Operating current |
3.8A |
Security |
16A |
Power consumption |
800W |
Operating area |
0-55 °C |
Thermostat factory setting |
35 °C |
deviation |
4 °C |
Maximum air volume in the internal circuit |
510 m³/h |
Maximum air volume of external circuit |
625 m³/h |
Type of refrigerant |
R134a |
Amount of refrigerant |
750g |
Dimensions |
1200x430x270mm |
Weight |
47kg |
sound level |
82dB |
Protection level (internal circuit) |
IP 54 |
Protection class (external circuit) |
IP 34 |
Color |
RAL7035 |
compressor |
HIGHLY/HITACHI |
Compressor type |
Rotating |
Fans |
EBMPAPST |
| Mounting type |
wall mounting |
