Klimatisierung für Schalttafeln / Kühler 1100W, PAD1100.01, Plastim
- Regular price
- €1.563,40
- Regular price
-
- Sale price
- €1.563,40
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty
"Design Series" Klimagerät für Schalttafeln/Kühler 1100 Watt / 3800BTU für Schalttafeln und Automatisierungsboards zur Seiten- oder Wandmontage.
Das Klimagerät PAD1100.01 (PLASTIM) für Schaltschränke ist mit einem modernen offenen Rotationskompressor von HIGHLY, einem Dixell-Thermostat, einem Kondensatverdampfer und einem Endschalter zur Steuerung der Öffnung der Schaltschranktür ausgestattet.
Alles, was für die Installation der Klimaanlage für den Schaltschrank benötigt wird, ist im Lieferumfang enthalten - Dichtungen, Abflussrohr, Befestigungsschrauben, Stromanschluss.
| TECHNISCHE DATEN | PAD1100.01 |
| Kühlleistung L35 / L35 | 1100W / 3800BTU |
| Betriebsspannung | 230VAC |
| Frequenz | 50/60 Hz |
| Anlaufstrom | 7.2A |
| Betriebsstrom | 2.5A |
| Sicherung | 10A |
| Leistungsaufnahme | 575W |
| Betriebsbereich | 0-55 °C |
| Thermostat Werkseinstellung | 35 °C |
| Abweichung | 4 °C |
| Max. Luftmenge Interner Kreislauf | 340 m³/h |
| Max. Luftmenge externer Kreislauf | 590 m³/h |
| Typ des Kältemittels | R134a |
| Menge des Kältemittels | 310gr |

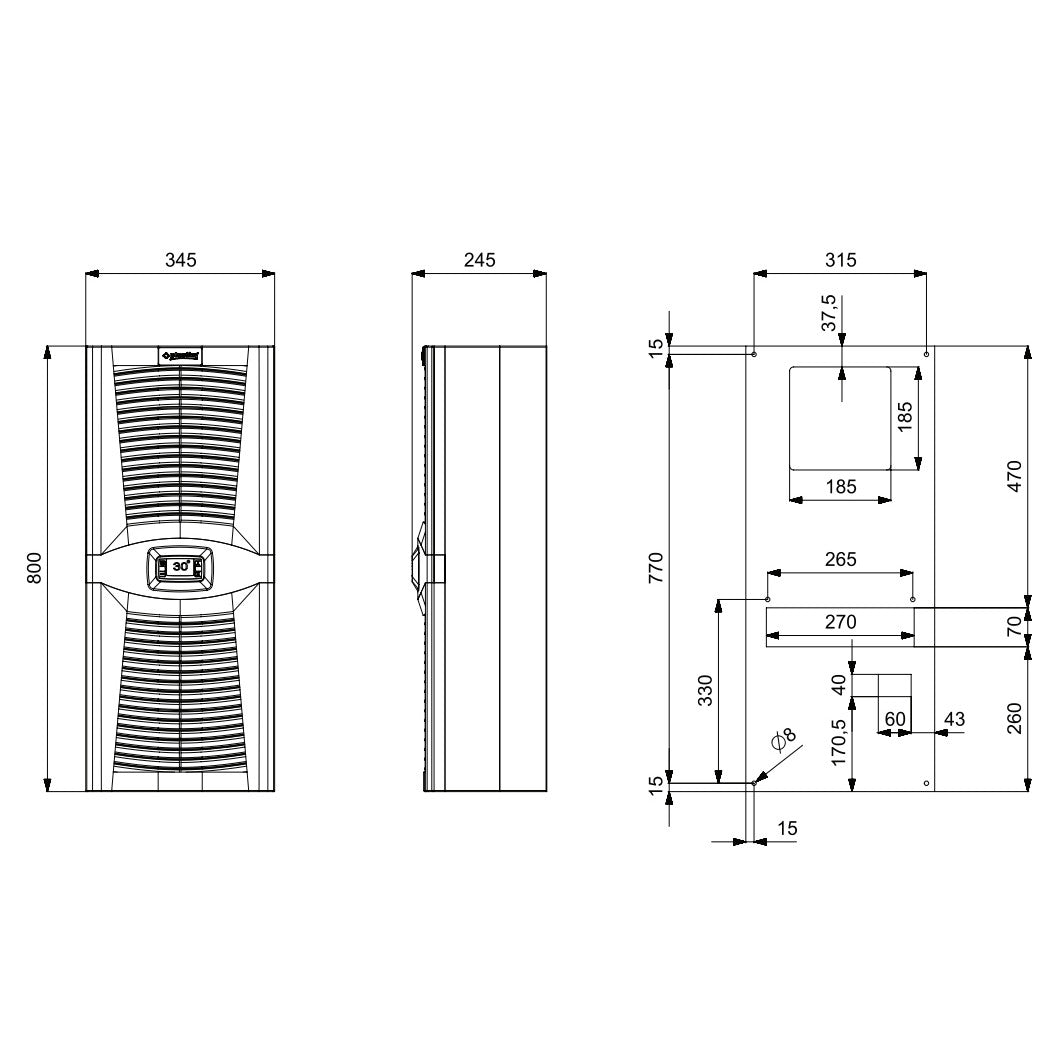

| Abmessungen | 800x345x223mm |
| Gewicht | 32kg |
| Schallpegel | 76dB |
| Schutzgrad (interner Kreislauf) | IP 54 |
| Schutzart (externer Stromkreis) | IP 34 |
| Farbe | RAL7035 |
| Kompressor | HIGHLY/HITACHI |
| Verdichter Typ | Rotierend |
| Ventilatoren | EBMPAPST |
| Montageart | Wandmontage |
