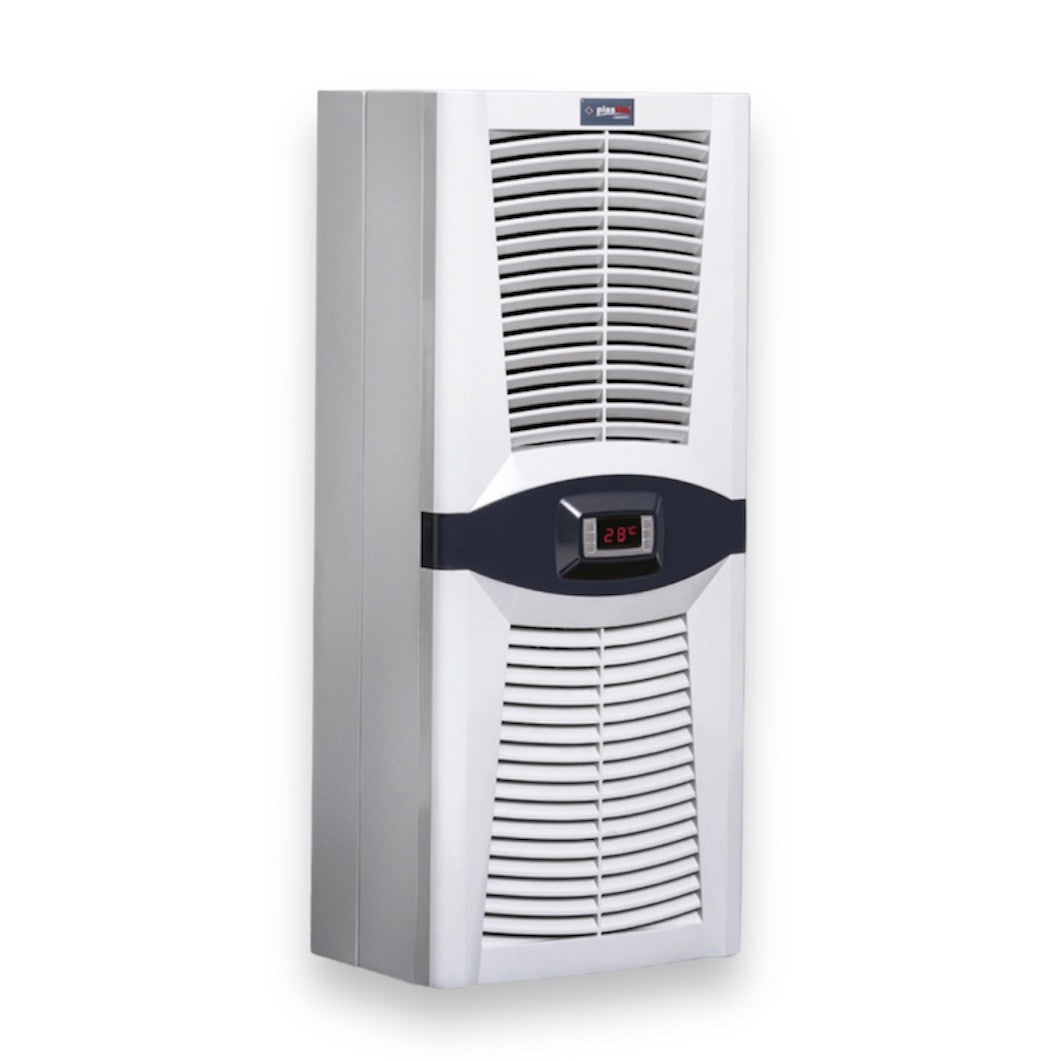

"Design Series" air conditioner for control cabinets / cooler 2500 Watt / 8550 BTU for control cabinets and automation cabinets for side or wall mounting.
The PAD2550.01 (PLASTIM) panel air conditioner is equipped with HIGHLY's state-of-the-art open rotary compressor, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the panel door opening.
Everything needed to install the air conditioner in the control cabinet is included in the delivery - gaskets, drain pipe, mounting screws, power connection.
|
TECHNICAL DATA |
PAD2550.01 |
|
Cooling capacity L35 / L35 |
2500W / 8550BTU |
|
Operating voltage |
230VAC |
|
frequency |
50/60 Hz |
|
Starting current |
11A |
|
Operating current |
3.8A |
|
Backup |
16A |
|
Power consumption |
800W |
|
Operating area |
0-55 °C |
|
Thermostat factory setting |
35 °C |
|
deviation |
4 °C |
|
Max. air volume internal circuit |
510 m³/h |
|
Max. air volume external circuit |
625 m³/h |
|
Type of refrigerant |
R134a |
|
Amount of refrigerant |
750g |
|

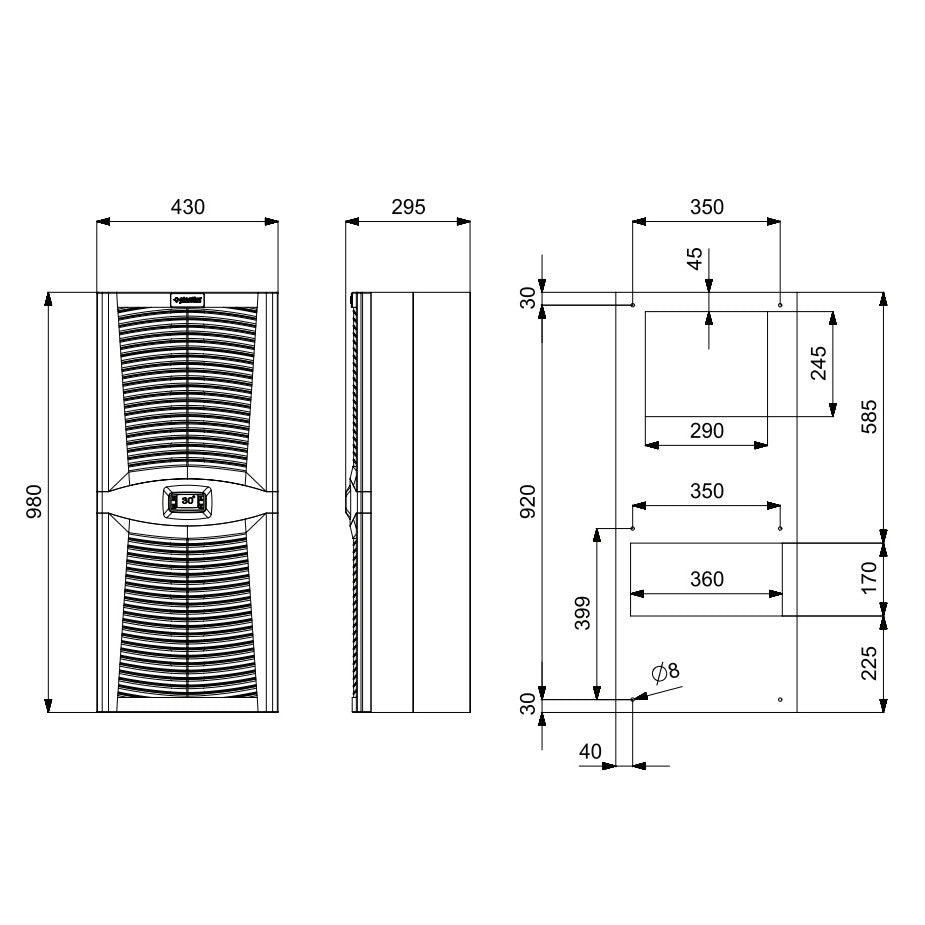

Dimensions |
980x430x270mm |
|
Weight |
47kg |
|
Sound level |
82dB |
|
Degree of protection (internal circuit) |
IP54 |
|
Protection class (external circuit) |
IP34 |
|
Color |
RAL7035 |
|
compressor |
HIGHLY/HITACHI |
|
Compressor type |
Rotating |
|
fans |
EBMPAPST |
|
Mounting type |
Wall mounting |
