Vendor: TENSE

Modbus Gateway RS485 TCP/IP 230V interface converter

Barcode: ETH-MOD-T
€165,28
€165,28
Low stock: 6 left
  • Description
  • Instructions
  • Payment methods
  • Warranty

Protocol converter RS485 → TCP/IP (Ethernet/WAN/LAN) - ETH-MOD-T | TENSE Türkiye

The ETH-MOD-T protocol converter from TENSE Turkey is a compact network gateway for connecting RS-485 (MODBUS RTU ) devices to a local area network (LAN), large SCADA systems, OPC servers, or the internet via a WAN connection. It enables remote monitoring, control, and configuration over a standard network infrastructure.

Key features and benefits

  • RS-485 to TCP/IP conversion (Ethernet/WAN/LAN)

  • Suitable for SCADA, OPC, remote servers and industrial automation systems.

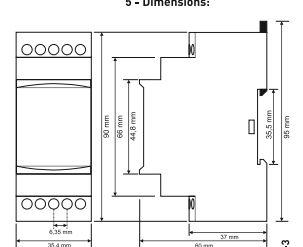

  • Compact design - only 2 modules (35 mm wide)

  • Quick installation on 35 mm DIN rail

  • Supplied with Ethernet cable (2 m)

  • 220 V AC power supply

  • Wide input voltage range 85-300 V , high overvoltage protection

  • Supports the connection of up to 32 RS-485 / MODBUS devices.

  • LED indicators: power supply, network connection, communication

  • Data rate up to 115,200 bps

  • Ethernet 10/100BASE-T

  • Operating temperature: -20 °C to +55 °C

  • No additional cooling required

  • Free software for configuring the gateway

Protocol compatibility

  • The device works exclusively with the MODBUS RTU protocol .

use

  • Industrial control and automation

  • SCADA systems

  • Remote monitoring of electricity meters, energy meters, network analyzers

  • Connecting RS-485 devices to a LAN/WAN infrastructure

  • Integration into IoT/IIoT systems
