ONKA 10mm2 spring-loaded terminal block DIN rail terminal block 2-pole gray, 1020044
Failed to load pickup availability
Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.
Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.
Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.
On account – This payment method is available to partners who have concluded a framework agreement with our company.
If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to receive an invoice with or without VAT.
The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and meet all EU requirements. In the event of a complaint, no return shipping fee is charged.

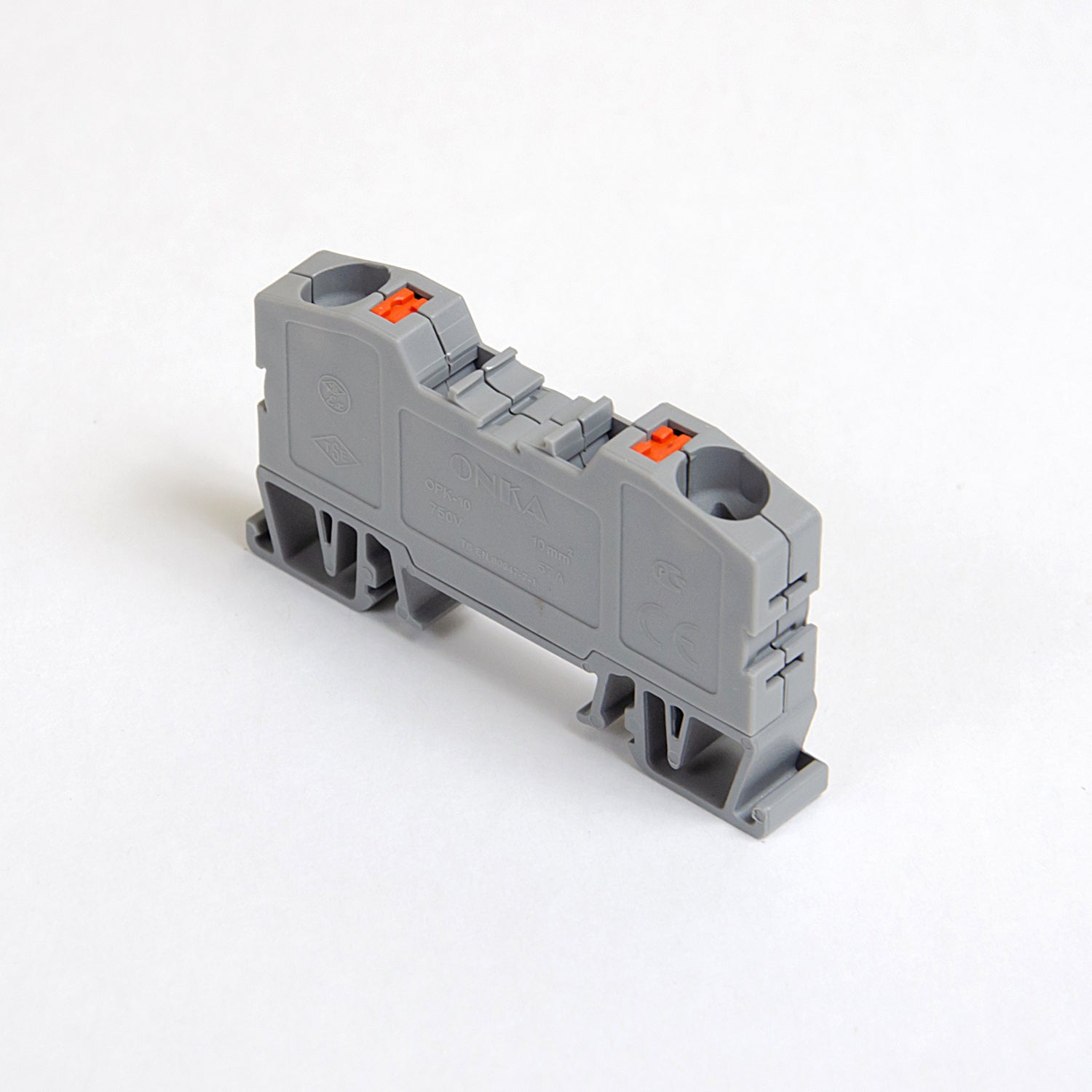

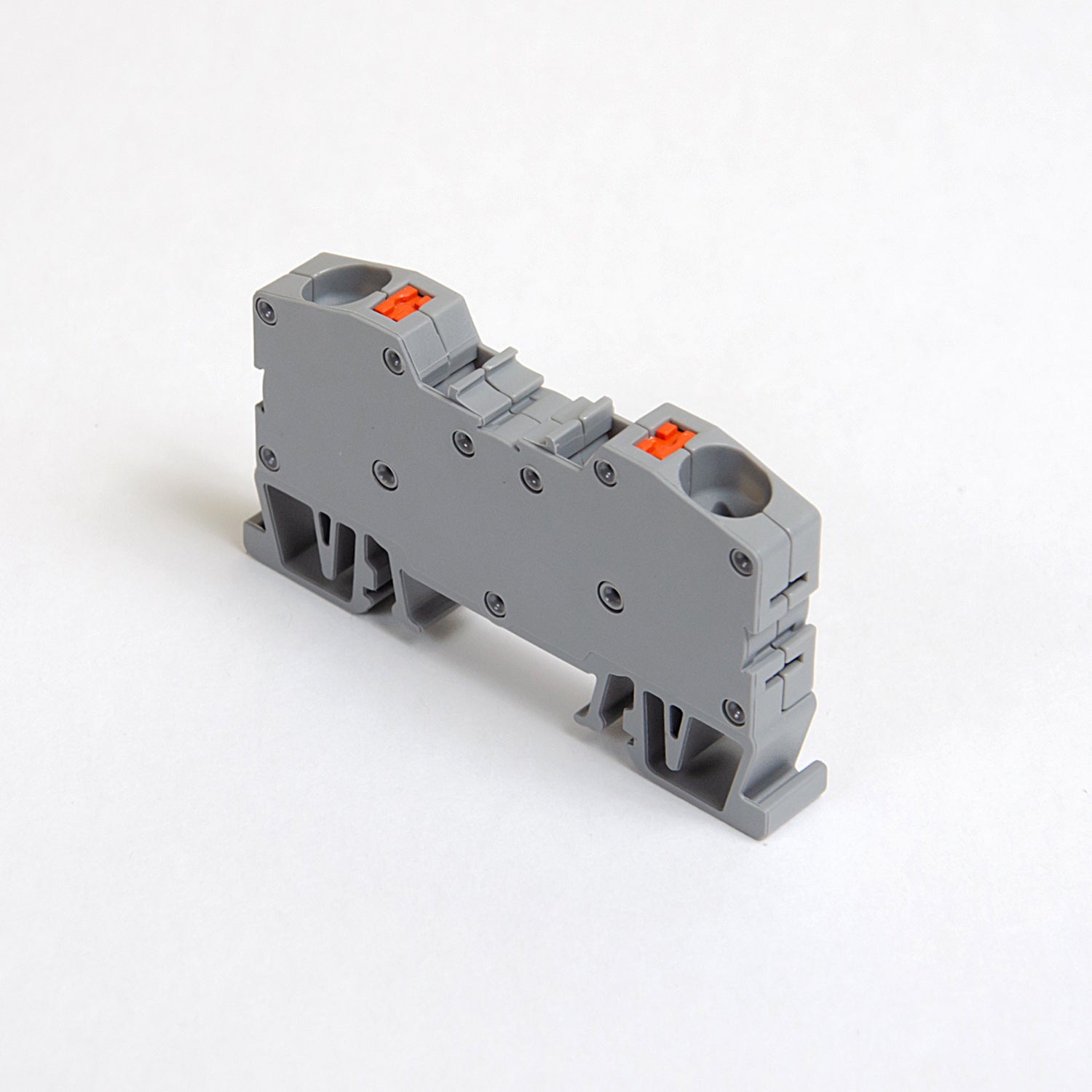

Spring busbar connector / DIN rail terminal 2-pole, retractable contact, gray, ONKA, made in Turkey
The compact ONKA installation rail couplings offer a variety of connection options for any cables with different cross-sections. The transparent housing allows for easy checking of the correct arrangement of the wires. The original ONKA quick couplings provide high installation comfort and 100% connection reliability.
Technical parameters
Cross-section of the connected single conductor up to: 10mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: Stainless steel/Copper
Connection position: top / top
Length of the cable tie: 12mm
Type of electrical connection: Spring clamp / Retractable contact
Rated voltage: 750V
Rated current: 57A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting type: DIN 35 mm mounting rail
Standard: EN-60947-7-1
