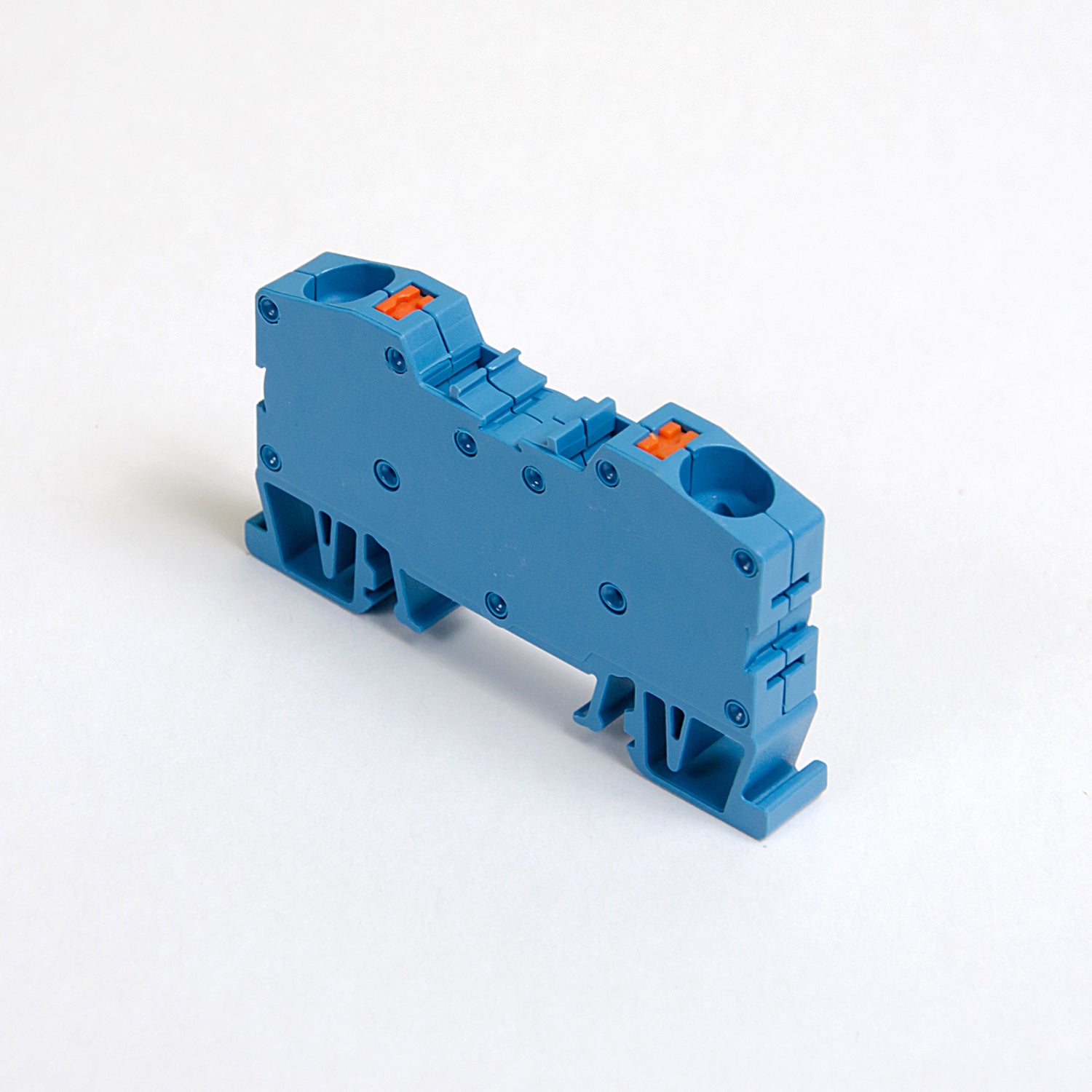

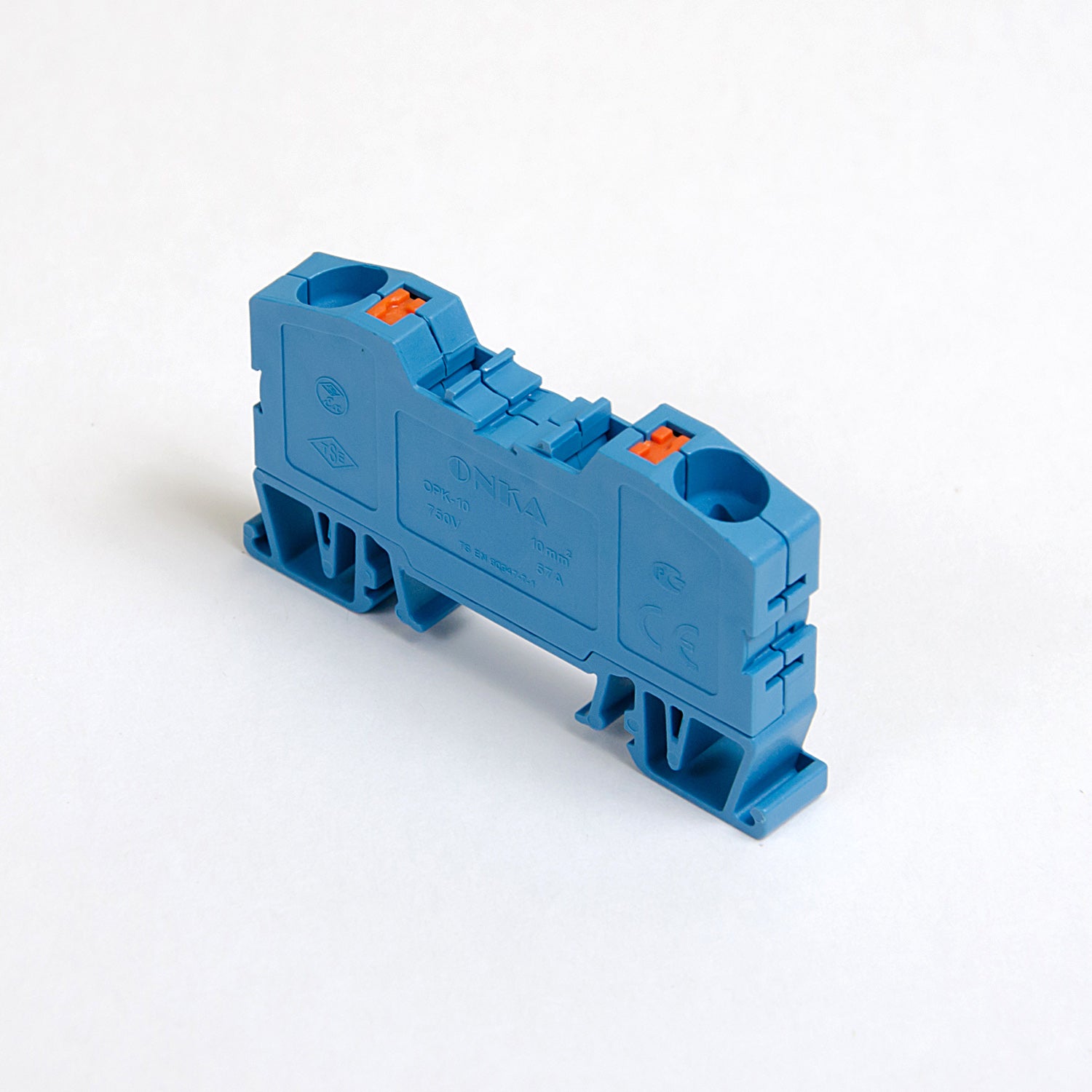

ONKA 10mm2 female terminal block DIN rail terminal 2-wire blue, 1020047

Spring busbar connector / DIN rail terminal 2-pole, retractable contact, blue, ONKA, made in Turkey.

The ONKA coupling/terminal is a reliable solution for anyone looking for functional and durable elements in electrical systems.
Made of high-quality materials, the coupling guarantees a long service life and resistance to mechanical damage.

Technical parameters

Cross-section of the connected single cable up to: 10mm2
Color: blue
Main housing insulation material: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top / top
Length of the cable tie: 12mm
Type of electrical connection: Spring terminal / Retractable contact
Rated voltage: 750V
Rated current: 57A
Operating temperature range: -40°C
Operating temperature range up to: 140°C
Mounting type: DIN 35 mm mounting rail
Standard: EN-60947-7-1
