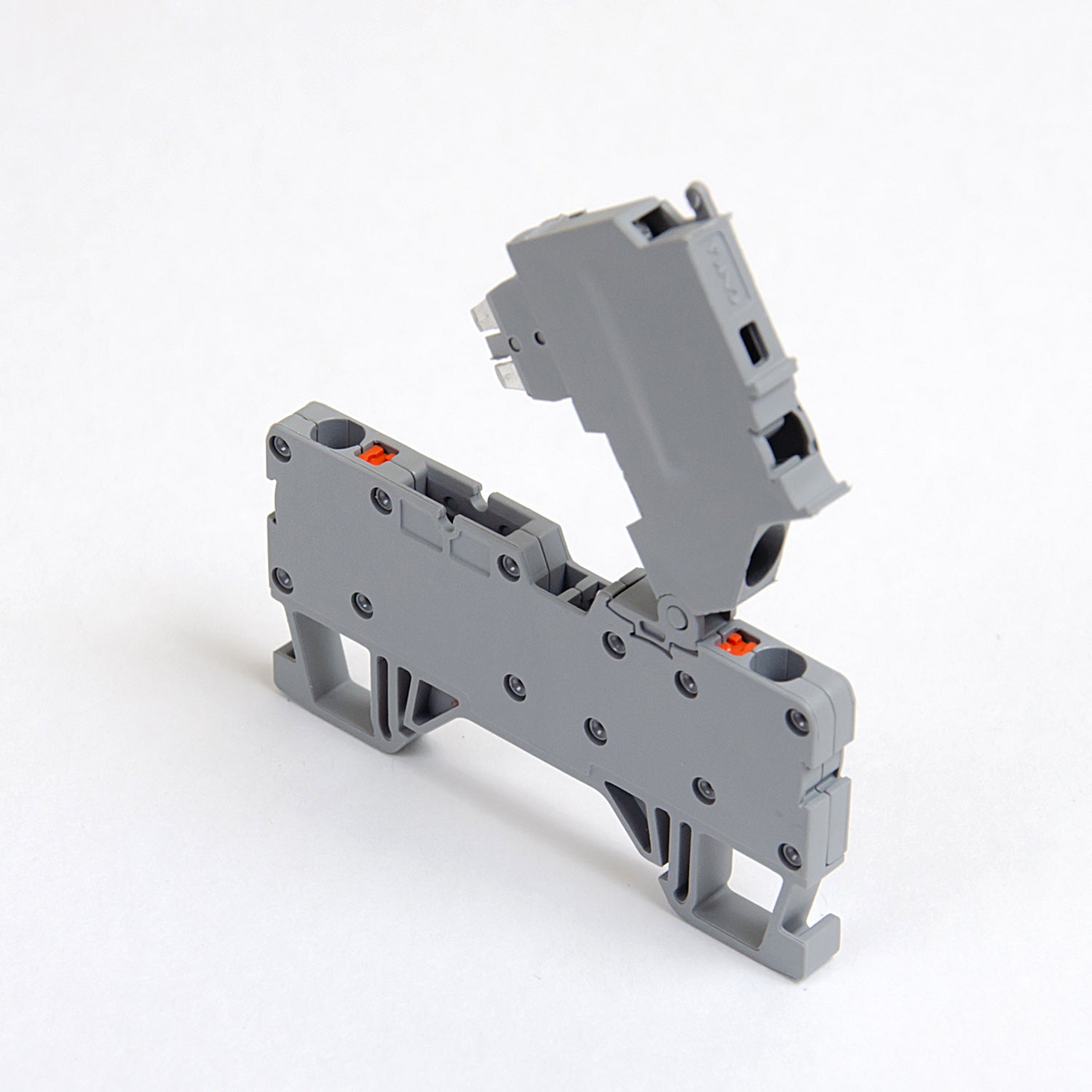

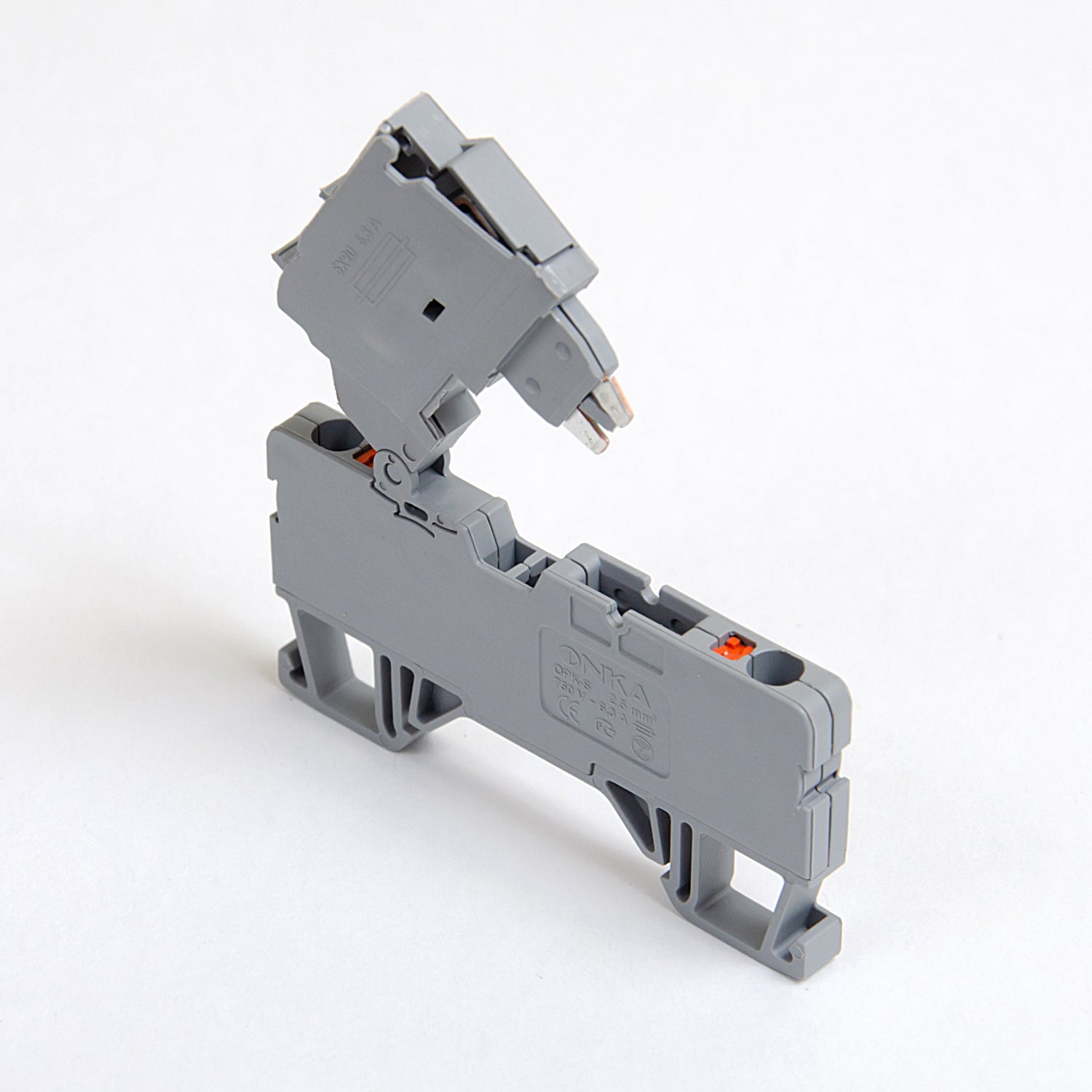

ONKA 2.5mm2 screw connection fuse terminal (fuse not included) grey, 1020223
- Regular price
- €2,48
- Regular price
-
- Sale price
- €2,48
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Spring-loaded screw terminal fuse holder (fuse not included) 2-conductor, grey, ONKA, made in Turkey
Used to protect low-current AC or DC circuits. A 5x20 mm fuse with a current rating of up to 6.3 A is installed in the terminal. The fuse is not included and must be ordered separately.
Technical parameters
Cross-section of the connected individual conductor up to: 2.5 mm²
Color: grey
Insulating material of the main housing: Polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top / upper
Cable insulation length: 9mm
Electrical connection type: Screw terminal
Nominal voltage: 750V
Rated current: 6.3A
Operating temperature range: -40°C
Operating temperature range up to: 140°C
Mounting type: DIN 35 mm mounting rail
Standard: EN-60947-7-1
