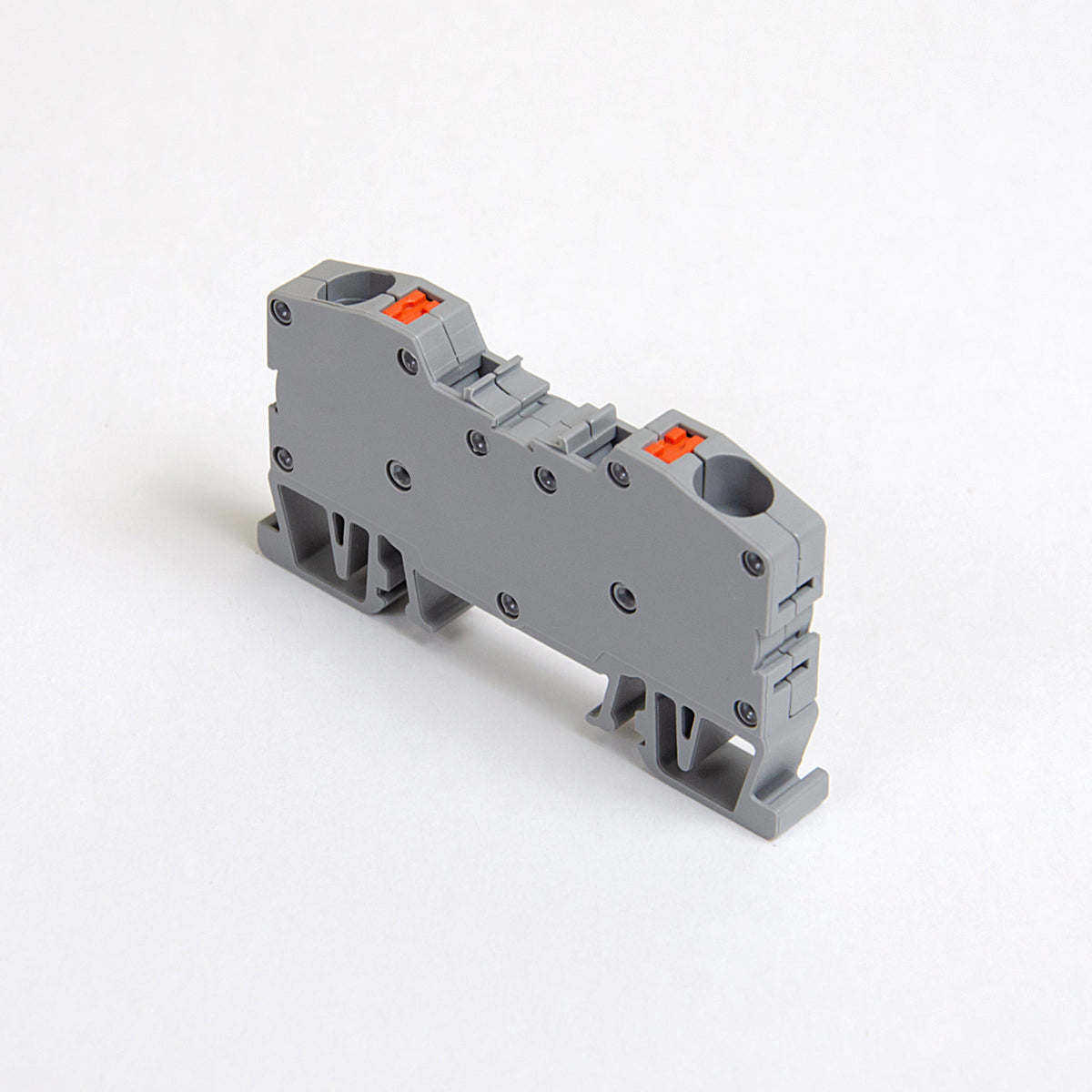

ONKA 6mm2 spring-loaded terminal block DIN rail terminal block 2-wire grey, 1020034
- Regular price
- €1,44
- Regular price
-
- Sale price
- €1,44
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Spring busbar connector / DIN rail terminal, 2-pole, retractable contact, gray, ONKA, made in Turkey
The compact ONKA installation rail couplings offer a wide range of connection options for any cable with different cross-sections. The transparent housing allows for easy verification of the correct arrangement of the wires. The original ONKA quick couplings offer a high level of installation convenience and 100% connection reliability.
Technical parameters
Cross-section of the connected single cable up to: 6mm2
Color: gray
Main housing insulation material: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top / top
Length of the cable tie: 12mm
Type of electrical connection: Spring terminal / Retractable contact
Rated voltage: 750V
Rated current: 41A
Operating temperature range: -40°C
Operating temperature range up to: 140°C
Mounting type: DIN 35 mm mounting rail
Standard: EN-60947-7-1
