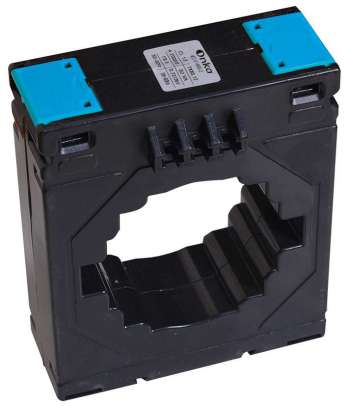

ONKA current transformer - CURRENT TRANSFORMER 1600/5A, 80MM, CLASS 0.5S, 20VA (TK8016005310 / 80011771)
- Regular price
- €44,12
- Regular price
-
- Sale price
- €44,12
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Plug-in measuring transducers for primary rated currents 1600 A, secondary current 5 A, rated power 20 VA, available in accuracy class 0.5S, ONKA.
The ONKA TK8016005310 is a clip-on/slide-on current transformer for the indirect measurement of sinusoidal alternating current in electrical installations, switchgear, and measuring systems. It converts the high primary current into a standard secondary current of 5 A, thus enabling the connection of measuring and protective devices without interrupting the main circuit.
Technical data
| parameter | Value |
|---|---|
| Primary rated current | 1600 A |
| Secondary current | 5 A |
| Inner diameter / busbar mounting | 80 mm |
| Rated power | 20 VA |
| Accuracy class | 0.5S |
| Mounting type | Plug-in / Slide-in, with mounting feet included |
| Application | Indirect electricity measurement in industrial and commercial plants |
Description
The transformer converts a primary current of up to 1600 A into a secondary current of 5 A , thus enabling safe and precise connections:
-
Measuring instruments and current meters
-
Protection systems
-
Automation and monitoring systems
Installation is simple - the transformer can be slid onto a busbar with a diameter of 80 mm , thus saving space and time, especially in control cabinets with limited space.
Advantages
-
High current carrying capacity - primary current up to 1600 A
-
Standard 5 A output - compatible with most measuring and monitoring devices
-
Accuracy class 0.5S - stable and accurate measurement, suitable for control and monitoring
-
Compact design - suitable for cabinets with limited space
-
Rated power of 20 VA - sufficient for connecting modern measuring instruments
Recommended use
-
Industrial and power distribution cabinets
-
Measurement, load control and power monitoring systems
-
Connection of meters, electricity meters, protection and automation systems
-
Power monitoring in electrical circuits and high-voltage networks
