ONKA current transformer - CURRENT TRANSFORMER 1200/5A, 80MM, CLASS 0.5S, 15VA (TK8012005309 / 80011770)
- Regular price
- €39,68
- Regular price
-
- Sale price
- €39,68
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Plug-in measuring transformers for primary rated currents 1200 A, secondary current 5 A, rated power 15 VA, available in accuracy class 0.5S, ONKA.

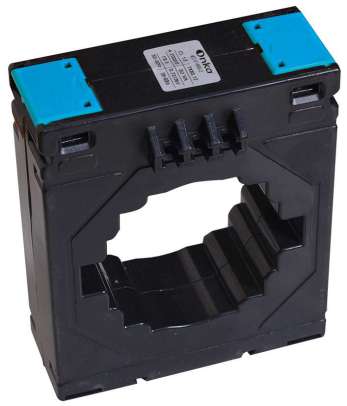

ONKA TK8012005309 - Plug-in current transformer 1200/5 A (15 VA, Class 0.5S)
The ONKA TK8012005309 current transformer is a high-quality plug-in transformer designed for the indirect measurement of sinusoidal alternating current in electrical switchboards, control cabinets, and professional measurement systems. Its robust construction and precise measurement class make it suitable for demanding industrial and commercial applications.
Key technical data
-
Primary rated current: 1200 A
-
Secondary current: 5 A
-
Rated load (secondary): 15 VA
-
Accuracy class: 0.5S - high accuracy for load measurement and monitoring
-

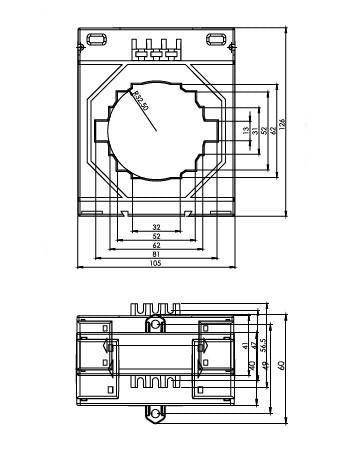

Mounting/Inner diameter: for busbars Ø 80 mm
-
Mounting feet: included in the scope of delivery - allows installation without interrupting the electrical circuit
Purpose and use
The transformer converts a high primary current of up to 1200 A into a standardized secondary current of 5 A. This conversion enables safe connection to measuring and monitoring devices without requiring the power lines to be routed directly through the measuring instruments.
It is suitable for:
-
Switchgear in residential, commercial and industrial sectors,
-
Load measurement and control systems,
-
Connection of measuring devices, electricity meters and power meters,
-
Protection and automation systems,
-
Applications where compact mounting on an 80 mm bus is required.
Product benefits
-
High current carrying capacity up to 1200 A
-
Standard 5 A output - broad compatibility with measurement and control systems
-
0.5S class accuracy - stable and reliable measurement for billing or industrial monitoring
-
Rated load 15 VA - suitable for most common measuring instruments
-
Easy installation thanks to snap-on design and mounting feet
-
Versatile use in measurement, protection, automation and monitoring
