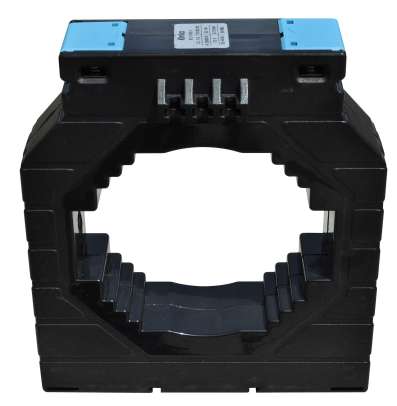

ONKA current transformer - CURRENT TRANSFORMER 1500/5A, 100MM, CLASS 0.5S, 20VA (TK10015005310 / 80011774)
- Regular price
- €42,32
- Regular price
-
- Sale price
- €42,32
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Slide-on current transformer for primary rated currents 1500 A, secondary current 5 A, rated power 20 VA, available in accuracy class 0.5S, ONKA.
High-precision current transformer for indirect AC current measurement in electrical networks and distribution systems. Used for ammeters, multimeters, power meters, automation systems, and protection circuits.
Technical data
Basic parameters
-
Primary rated current: 1500 A
-
Secondary current: 5 A
-
Rated power: 20 VA
-
Accuracy class: 0.5S (increased accuracy at partial load)
-

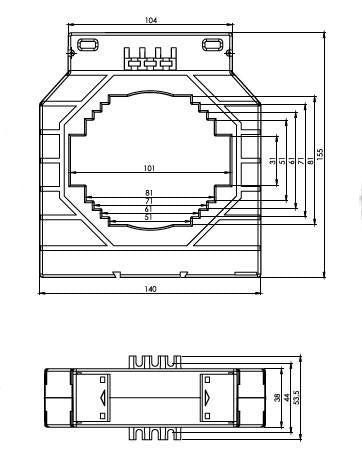

Inner diameter/busbar mounting: 100 mm
Design features
-
Design: Slide-on transformer
-
Installation: on the busbar without interrupting the circuit , using the supplied mounting elements.
-
Easy installation in switchboards and control cabinets
Description and application
The transformer converts a high primary current (up to 1500 A ) into a standard and safe secondary current of 5 A , which is intended for the following purposes:
-
Measuring instruments
-
Meters and monitoring systems
-
Automation equipment
-
Protection and control circuits
It offers precise measurement of sinusoidal alternating current and, thanks to its accuracy class of 0.5s, is also suitable for commercial meters , consumption monitoring, and energy audits. Installation is quick – the transformer simply slides onto a 100 mm diameter busbar.
Advantages
-
High current carrying capacity - up to 1500 A
-
Standard output 5 A - compatible with most measuring and control devices
-
Accuracy class 0.5S - high accuracy even at low loads
-
Simple busbar mounting without having to interrupt the circuit.
-
20 VA output - suitable for load measuring circuits
Application areas
-
Industrial switchgear and distribution systems
-
Energy measurement and monitoring systems
-
Commercial measuring systems
-
Protection and measuring circuits
-
Load monitoring, phase balancing
-
Energy audits and energy management
