ONKA current transformer - CURRENT TRANSFORMER 1600/5A, 125MM, CLASS 0.5S, 15VA (DK12516005309 / 80011779)
- Regular price
- €53,48
- Regular price
-
- Sale price
- €53,48
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Slide-on current transformer for primary rated currents 1600 A, secondary current 5 A, rated power 15 VA, available in accuracy class 0.5S, ONKA.
The ONKA DK12516005309 is a high-precision slide-on current transformer for indirect AC current measurement in distribution and industrial systems. It converts the high primary current into a standard secondary current of 5 A, thus enabling the connection of measuring and protection devices without the main current having to pass directly through the device.
Technical data
| parameter | Value |
|---|---|
| Primary rated current | 1600 A |
| Secondary current | 5 A |

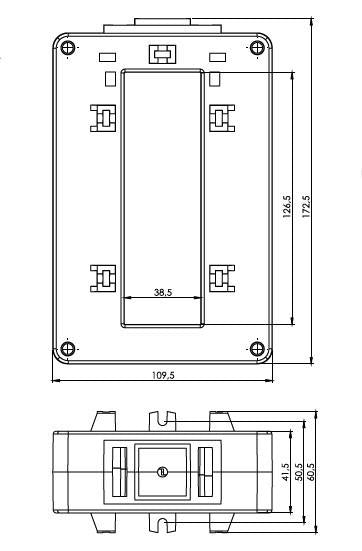

| Inner diameter / busbar mounting | 125 mm |
| Rated power | 15 VA |
| Accuracy class | 0.5S |
| Mounting type | Sliding (window/clip-on), with mounting feet included |
| Application | Indirect current measurement in control cabinets, measuring and monitoring systems |
Description
This transformer converts a primary current of 1600 A into a secondary current of 5 A and enables a safe connection:
-
Measuring devices and electricity meters
-
Protection systems
-
Automation and energy monitoring systems
The compact design for 125 mm busbar mounting allows for easy installation even in confined spaces.
Advantages
-
High current carrying capacity - primary current up to 1600 A
-
Reliable and accurate measurements - secondary current 5 A, accuracy class 0.5S
-
Compact window design - easy installation on a 125 mm power rail
-
Rated power of 15 VA - compatible with most meters and secondary loads
-
Easy installation - slide-on design with included mounting feet
Application
-
Industrial and commercial switchgear
-
Energy measurement and power monitoring systems
-
Connection of meters, ammeters and protective devices
-
Monitoring of electrical loads in three-phase and power grids
