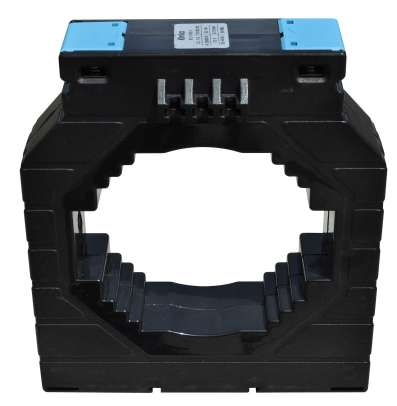

ONKA current transformer - CURRENT TRANSFORMER 2000/5A, 100MM, CLASS 0.5S, 30VA (TK10020005312 / 80011775)
- Regular price
- €44,12
- Regular price
-
- Sale price
- €44,12
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Plug-in measuring transducers for primary rated currents 2000 A, secondary current 5 A, rated power 30 VA, available in accuracy class 0.5S, ONKA.
The ONKA TK10020005312 is a reliable clip-on/window current transformer for the indirect measurement of sinusoidal alternating current . It converts a high primary current into a standardized secondary current of 5 A, thus enabling the safe connection of measuring instruments, protection and automation systems.
Technical data
| parameter | Value |
|---|---|
| Primary rated current | 2000 A |
| Secondary current | 5 A |
| Inner diameter / busbar mounting | 100 mm |
| Rated power | 30 VA |
| Accuracy class | 0.5S |
| Mounting type | Sliding/window mounting (mounting feet included) |
| Application | Indirect current measurement in control cabinets, switchboards and industrial plants |
Description
The transformer converts a primary current of up to 2000 A into a secondary current of 5 A , thus enabling precise and safe connections:
-
Measuring instruments and current meters
-
Protection and automation systems
-
Monitoring devices and load control systems
With an accuracy class of 0.5S, it offers reliable and stable measurements suitable for commercial and industrial energy monitoring systems .
Mounting on a 100 mm busbar ensures quick and convenient installation, suitable for standard switchboards and distribution boards.
Advantages
-
Primary current up to 2000 A - suitable for high-current distribution
-
Standard secondary current of 5 A - compatible with most measuring devices
-
Accuracy class 0.5S - reliable and accurate measurement
-
Rated power 30 VA - sufficient for supplying secondary circuits
-
Easy installation - sliding/window design with mounting feet
-
Versatile use - suitable for switchgear, industrial, commercial and utility systems
Recommended use
-
Industrial and commercial switchgear
-
Electricity measurement and load monitoring systems
-
Connection of electricity meters, counters, protection and automation systems
-
Load current control and power monitoring in high-current networks
