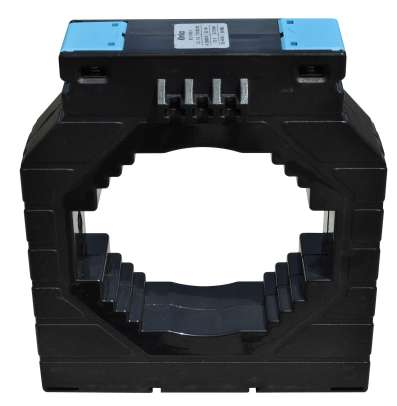

ONKA current transformer - CURRENT TRANSFORMER 3000/5A, 100MM, CLASS 0.5S, 30VA (TK10030005312 / 80011776)
- Regular price
- €66,84
- Regular price
-
- Sale price
- €66,84
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Plug-in measuring transducers for primary rated currents 3000 A, secondary current 5 A, rated power 30 VA, available in accuracy class 0.5S, ONKA.
The ONKA TK10030005312 is a high-precision clip-on/window current transformer for the indirect measurement of sinusoidal alternating current in industrial, commercial and distribution systems.
Technical parameters
| parameter | Value |
|---|---|
| Primary rated current | 3000 A |
| Secondary current | 5 A |

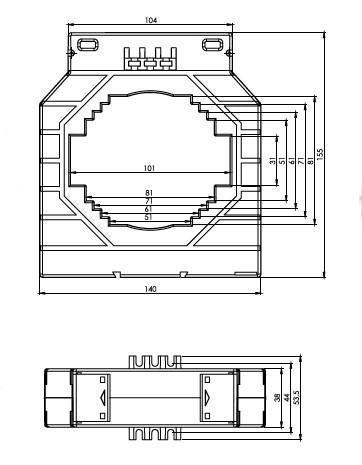

| Inner diameter / busbar mounting | 100 mm |
| Rated power (secondary load) | 30 VA |
| Accuracy class | 0.5S |
| Mounting type | Plug-in/window mounting, including mounting feet |
Product description
The transformer converts a high primary current of up to 3000 A into a standardized secondary current of 5 A , thus enabling a safe connection:
-
Meters and electricity meters
-
Protection systems
-
Automation and monitoring systems
Thanks to the sliding design and mounting feet, the transformer can be easily installed on a 100 mm diameter busbar without interrupting the circuit.
Advantages
-
High current capacity - suitable for high power lines and loads (primary current up to 3000 A)
-
Standard 5 A secondary current - compatible with most measuring and control devices
-
Accuracy class 0.5S - stable and accurate measurement, suitable for monitoring and protection
-
Rated power of 30 VA - sufficient for connecting secondary devices
-
Easy installation - insert window and mounting feet included
-
Universal application - suitable for switchgear, industrial systems, measurement and protection applications
Recommended use
-
Industrial and commercial switchgear
-
Power load and power consumption monitoring
-
Connection of meters, electricity meters, protection and automation systems
-
Load measurement and control systems
