ONKA current transformer - CURRENT TRANSFORMER 4000/5A, 100MM, CLASS 0.5S, 30VA (TK10040005312 / 80011777)
- Regular price
- €80,20
- Regular price
-
- Sale price
- €80,20
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Plug-in measuring transducers for primary rated currents 4000 A, secondary current 5 A, rated power 30 VA, available in accuracy class 0.5S, ONKA.

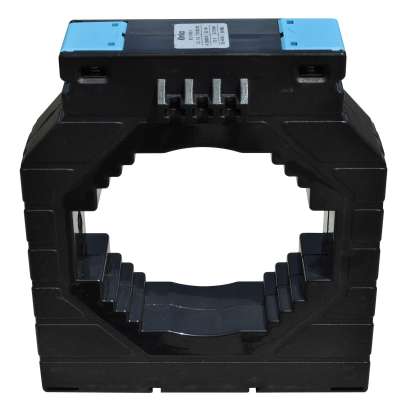

ONKA TK10040005312 is a clip-on/window current transformer for the indirect measurement of sinusoidal alternating current . It is suitable for high-performance industrial and commercial switchgear and distribution systems.
Technical parameters
| parameter | Value |
|---|---|
| Primary rated current | 4000 A |
| Secondary current | 5 A |

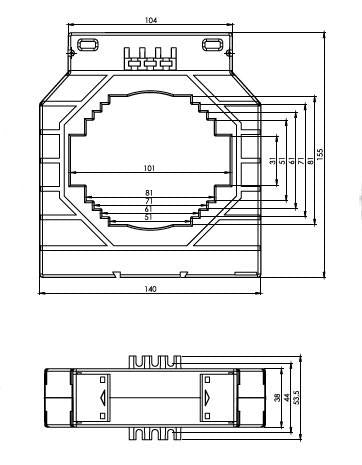

| Mounting/Inner diameter | Ø 100 mm |
| Rated power (secondary load) | 30 VA |
| Accuracy class | 0.5S |
| Mounting type | Window/plug-in mounting, with mounting feet |
Product description
The transformer converts a very high primary current (up to 4000 A) into a standard secondary current of 5 A , thus enabling a safe and convenient connection:
-
Measuring devices and electricity meters
-
Protection and automation systems
-
Monitoring and measuring devices
Installation is simple because the main power circuit does not need to be interrupted , as the window is extendable.
Advantages
-
High current capacity - up to 4000 A primary current, suitable for lines and high loads
-
Standard 5 A output - compatible with most measuring and protection devices
-
Accuracy class 0.5S - stable and accurate measurements for commercial and industrial applications
-
Rated power 30 VA - sufficient for supplying a secondary circuit
-
Easy installation - window cover + mounting feet, no interruption of the electrical circuit required.
-
Universal application - suitable for switchgear, industrial plants, measuring, protection and automation systems
Recommended use
-
Large industrial switchgear and distribution systems
-
Heavily loaded industrial and commercial power grids
-
Power measurement, power monitoring and phase balancing systems
-
Protection and measuring circuits that require reliable and accurate current control
