OPK 3 Inline-Klemme dreipaarig 2,5 mm²
- Regular price
- €2,76
- Regular price
-
- Sale price
- €2,76
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

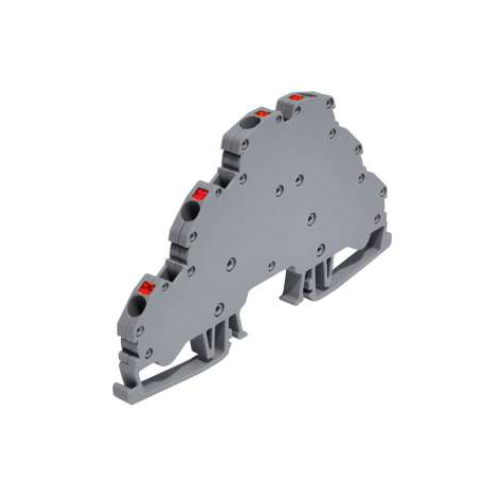

Dreistufige schraubenlose DIN-Schienen-Klemme grau, ONKA
ONKAs mehrfache Inline-Klemmen bieten eine platzsparende Lösung für zuverlässige elektrische und mechanische Verbindungen in engen Schaltschränken. Das dreistufige Design ermöglicht es, mehrere unabhängige Stromkreise übereinander zu verbinden, während eine minimale DIN-Schienenbreite von 35 mm beibehalten wird. ONKAs Original-Klemmen bieten hohen Montagekomfort, sichere Drahtfixierung und langfristige Verbindungsstabilität auch unter rauen industriellen Bedingungen.
Technische Parameter
Aufbau.
Farbe: grau
Nennquerschnitt (IEC): 2,5 mm²
Nennstrom (IEC): 24 A
Bemessungsspannung (IEC): 750 V
Material des Isolierkörpers: Polyamid (PA 6.6)
Werkstoff Brücke: Kupfer
Material der Feder: rostfreier Stahl
Material Bedienknopf: Polyamid (PA 6.6), orange
Betriebstemperaturbereich: -40 °C bis +140 °C
Abisolierlänge: 9 mm
Montageart: Tragschiene DIN 35 mm
Norm: EN-60947-7-1
Zertifizierung: TSE, CE

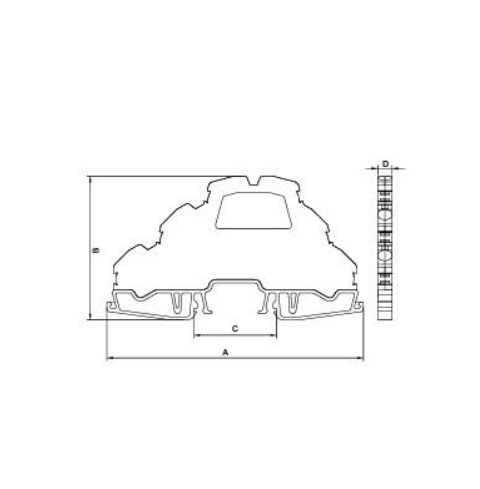

Abmessungen:
Abmessung A: 106,0 mm
Abmessung B: 60,0 mm
Abmessung C: 34,5 mm
Abmessung D (Klemmbreite): 5,9 mm
