PHG02 Hygrostat setting range 10-90 %RH, Plastim
- Regular price
- €63,36
- Regular price
-
- Sale price
- €63,36
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty

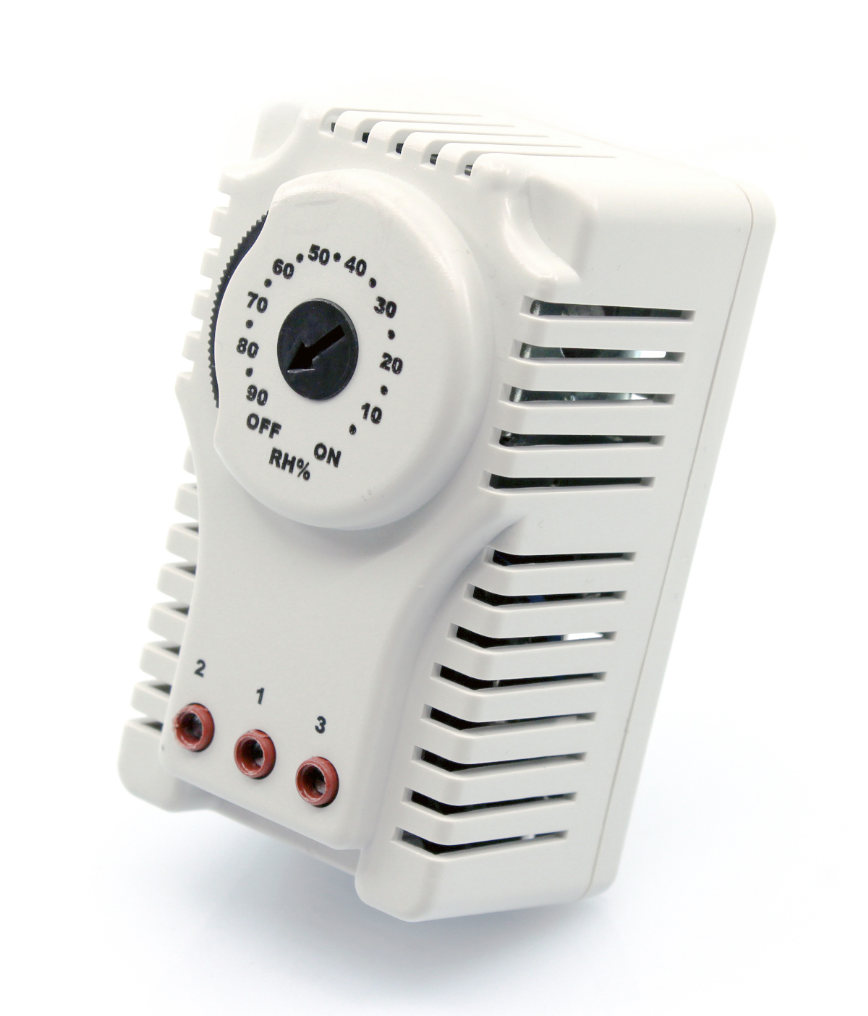

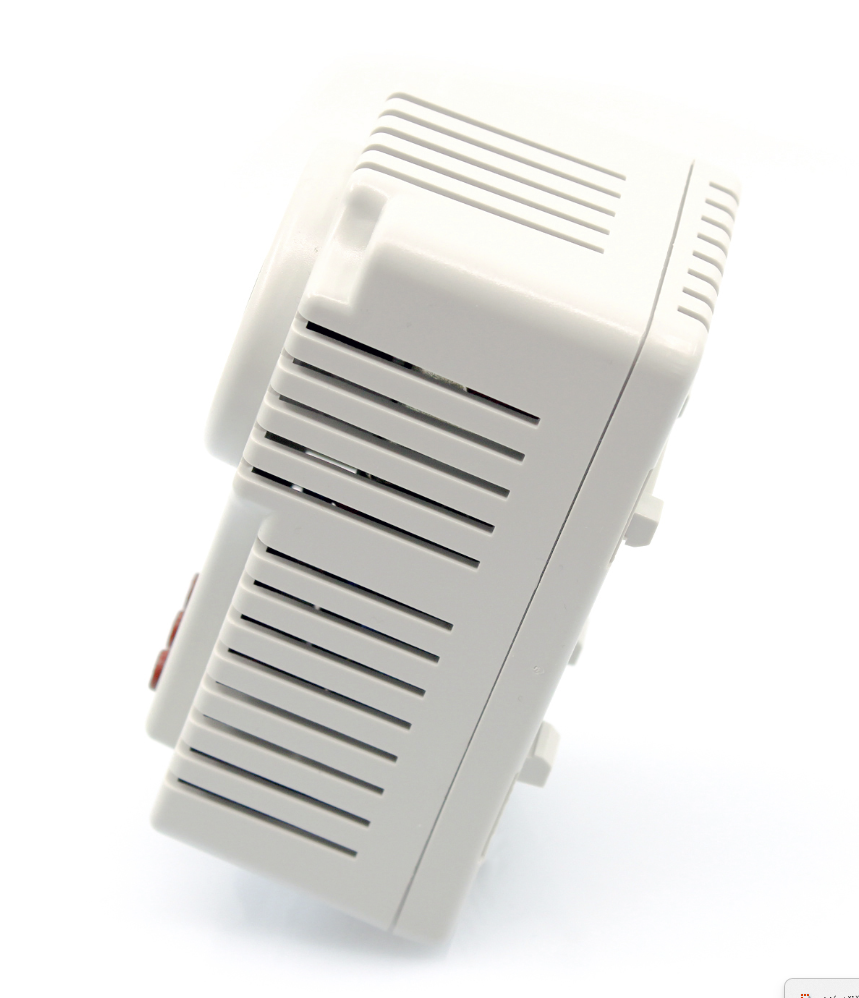

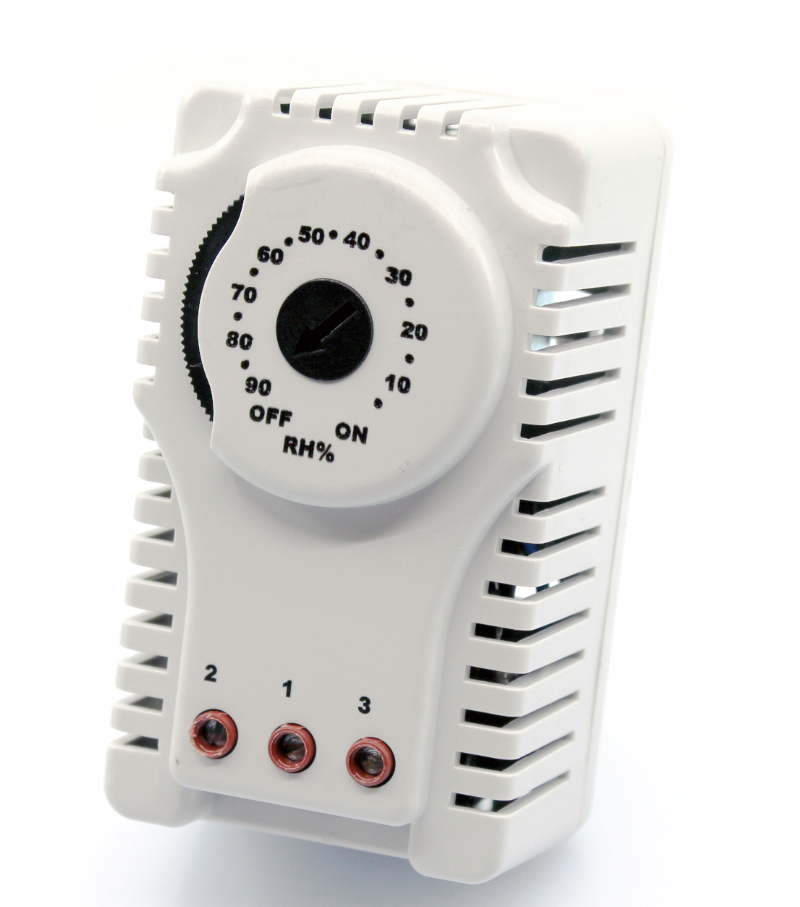

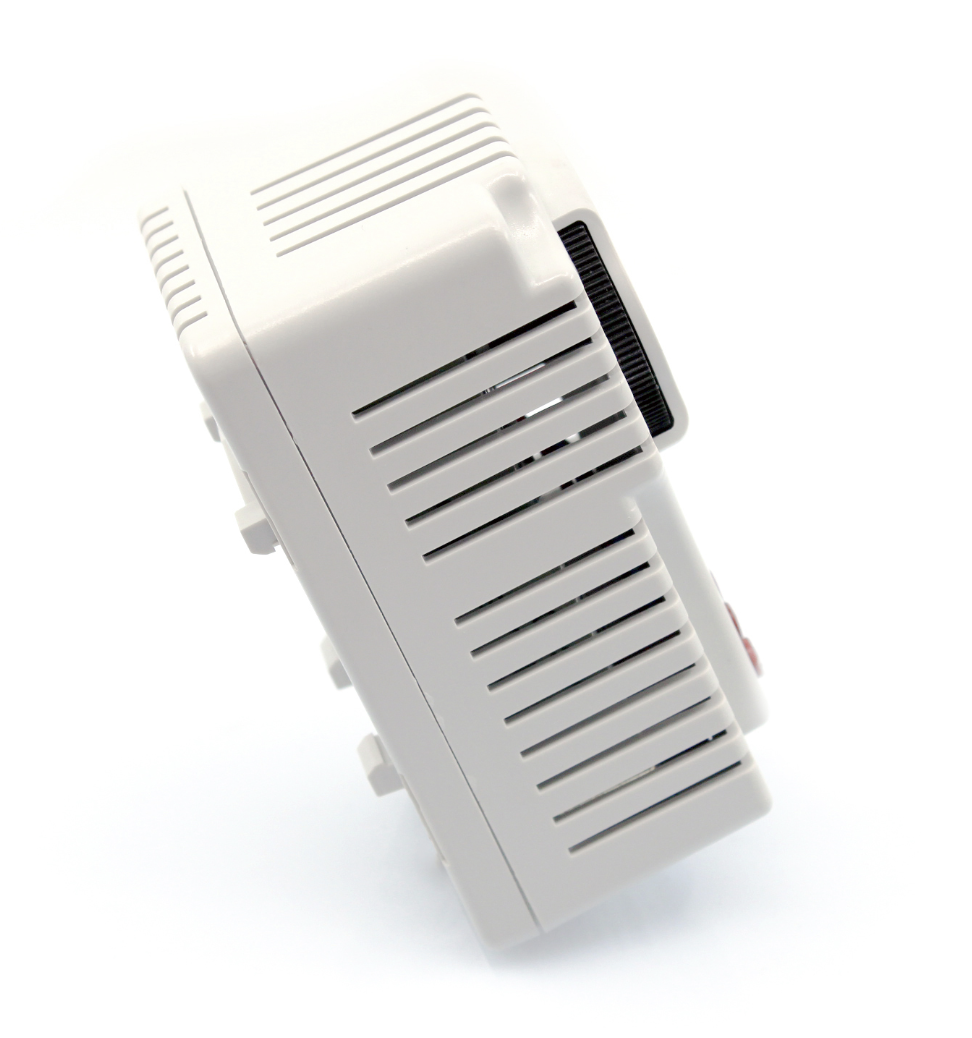

PLASTIM PHG02 hygrostat 110-250VAC (10A-5A current load), 10 - 90%RH, screw terminals IP20
This hygrostat (mechanical relay for humidity control, or hygrometer or hygrostat) can be used for both humidity reduction and humidity increase. For this purpose, the device is equipped with a switching contact that allows this hygrostat to be used for any humidity control task.
This humidity control relay is designed for installation in control panels, ATMs, payment terminals, gaming machines or other rooms to control the humidity and switch on the corresponding heating or drying devices.
Manufacturer code |
Unit |
PHG02 |
Tension |
V AC |
110-250 |
Setting range |
% RH |
10-90 |
Color potentiometer |
- |
Black |
current |
A |
(10-5) |
Hysteresis |
- |
%5 - %10 |
Sensor type |
- |
polyamide tape |
Electrical connection |
- |
3-pin terminal |
Cable cross-section |
- |
0.75 mm² - 4.0 mm² |
Operating temperature |
°C |
+10/+60 |
Storage temperature |
°C |
+10/+60 |
Degree of protection |
- |
IP20 |
Color of the case |
- |
RAL7035 |
Installation |
- |
DIN rail 35mm |
Dimensions |
mm |
94x54x56 |
Weight |
G |
180 |
