OPAS

Step switch 0-1-2-3-4 degrees rotary switch, 1-2 poles, 10-160A

In stock - 17 items available
SKU: YPT114010
€14,08 Inklusive UST
Anzahl der Pole
Mark

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and meet all EU requirements. In the event of a complaint, no return shipping fee is charged.

Step switch 0-1-2-3-4, rotary switch, 1-2 poles, 10-160A, YPT114, manufacturer OPAŞ (Turkey)

  • 10A, 16A, 25A, 32A, 40A, 63A, 100A, 125A, 160A

The step switch 0-1-2-3-4 can be used, for example, to select one of three phases and a generator to supply single-phase electrical devices or to turn on one of several devices/modes/process program steps, etc.

Package switches are designed for manual switching of low-voltage circuits. They are used for the construction of main and control circuits, turning on and off electric motors and other low-power devices. The advantages of this series of switches lie in their compact size, electrical and mechanical resistance, as well as high on and off capability.

The multiposition diagram 0-1-2-3-4 is used for switching between different operating modes of the device (movement speed, heating temperature).

Technical specifications:

  • Articulated design.
  • Type of device: Rotary switch

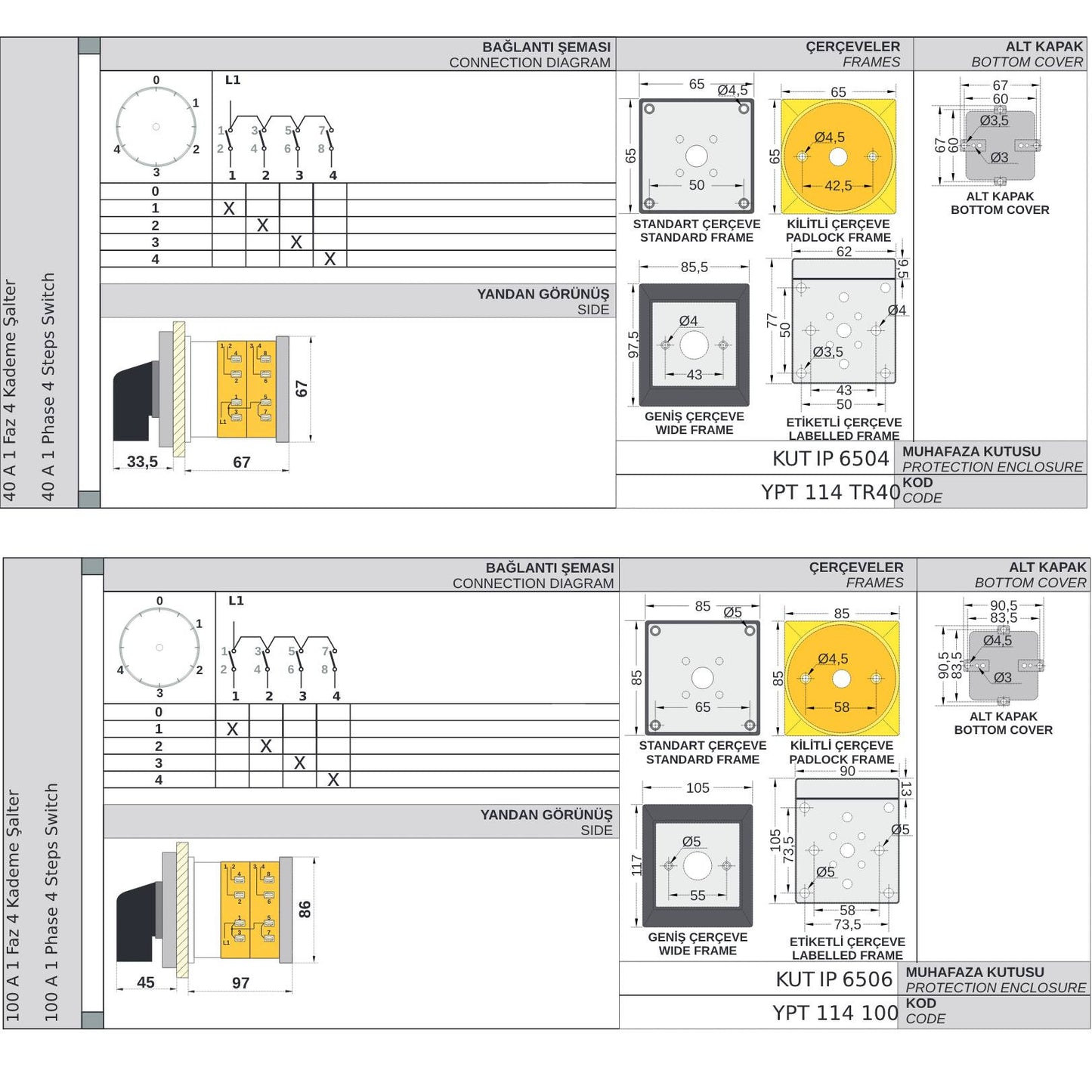

  • Switching diagram: 0 - 1 - 2 - 3 - 4
  • Number of poles: 1
  • Type: Built-in
  • Number of phases: single-phase
  • Protection type: No
  • Degree of protection against dust and water: IP20
  • Operating temperature range: -30 to +55°C
