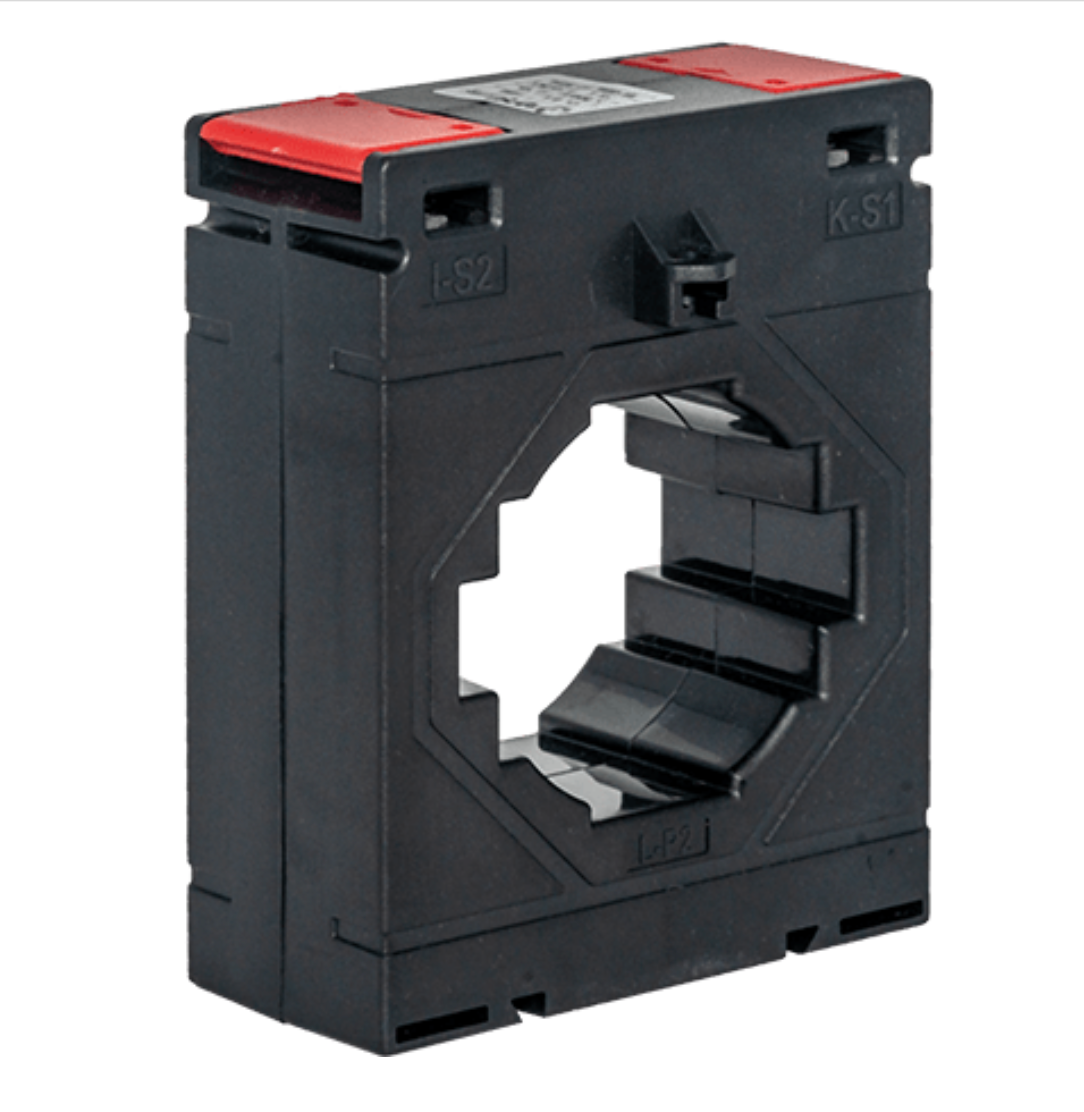

TK80 - current measuring transformer 1500/5
- Regular price
- €39,68
- Regular price
-
- Sale price
- €39,68
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty
Current transformer 1500/5A, 0.5S, 20VA - clamping (81×13 mm, clamping)
Description
Voltage-current transformers enable the precise measurement and control of electrical parameters in AC systems. They convert high current values into lower, safer values for measuring instruments, thus ensuring efficient control and management of electrical systems.
Technical data
| parameter | Value |
|---|---|
| Conversion coefficient | 1500/5 A |
| Resilience | 20 VA |
| Accuracy class | 0.5S |
| Terminal block | Non-removable cover, for high-pole conductors, brass version |
| Housing | Flame-retardant, self-extinguishing ABS |
| Installation | KK0001 or KK0002 |

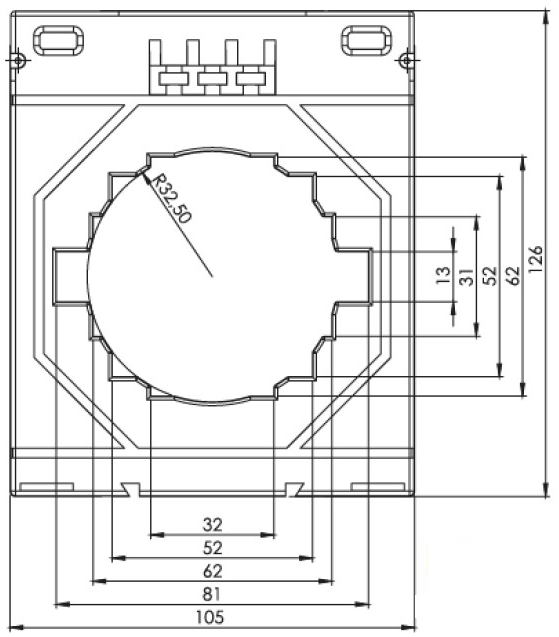

| Primary winding | 80 × 10 mm |
| Round conductor | Ø 65 mm |
| T-resistor against short-circuit current (Ith) | 60 × In |
| T-resistance against constant current (Id) | 1 × In |
| Operating temperature | -25 °C ~ +85 °C |
| Rated frequency | 50 - 60 Hz |
| Switching current (FS) limit | 5 |
| test voltage | 3 kV for 1 minute |
| Maximum system voltage | 0.72 kV |
| Standards | IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN57414, BS3938, BS7626, EN 61869 |
Advantages
-
High accuracy - reliable measurements for precise control of electrical parameters
-
Wide range of rated currents - possibility to select the optimal model for different applications
-
Various window sizes - flexibility in installation and compatibility with different ladders
-
Reliability and durability - made from high-quality materials for a long service life
Strain current transformers ensure the stable operation of electrical systems and the measurement accuracy that is crucial for efficient energy management.
Download on
Technical information about current transformers (996 kB) - will be sent upon request
