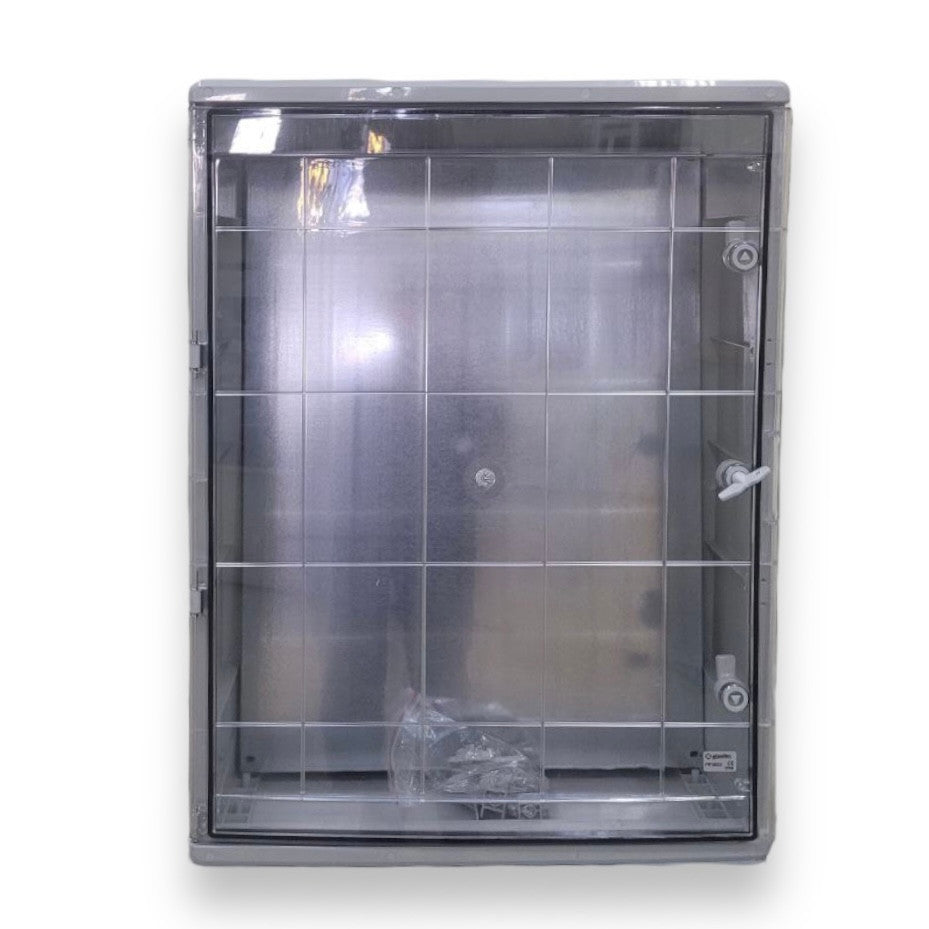

Transparent plastic door 500x700x250mm IP65 PP3020
Failed to load pickup availability
Plastic control cabinet, transparent door, rebate 500x700x250mm, IP65, PP3020 Plastim
The new waterproof plastic enclosures from the Turkish company Plastim open up a new world of use for plastic protective enclosures for automation and power distribution applications.
Reinforced panties with metal pin
New cabinet design with corner reinforcements and increased thickness of the door and the entire product.
Extended temperature range in which the protector retains all its improved properties -35/+60C
- Fully corrosion-resistant, lightweight, solid, galvanized metal mounting panel
- Can be equipped with transparent doors and DIN rails with reinforced metal pin panties;
MAIN TECHNICAL FEATURES
- Mounting plate: made of 1 mm thick galvanized steel
- Material: HB ABS halogen-free + polycarbonate (door).
- Width: 500 mm
- Height: 700 mm
- Depth: 250 mm
- Color: 250 mm, 250 mm, 250 mm, 250 mm, 250 mm, 250 mm: RAL7035 light gray
- Protection class: IP65, IK08
- Rated voltage: up to 690 V
- Maximum current: up to 800 A
- Operating temperature: -35°C + 65°C
- Weight: 10.10 kg
