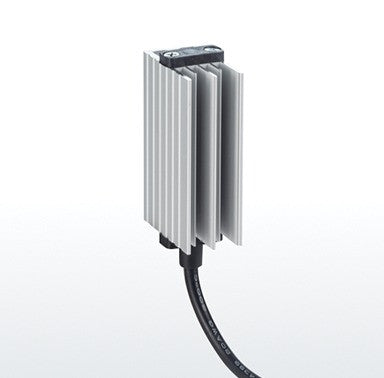

Mini panel heater PTC 15W, MPHT15, Plastim

Electric mini heater (PTC body heater, post-tension heater) control cabinet heater with anodized aluminum heat sink and overcurrent protection, for DIN rail mounting with 15 watts, 110-220 volts AC or DC, MPHT15, Plastim - made in Turkey.

• Heating power: 15W

• Operating voltage: 100-250V AC/DC

• Maximum current: 2A

• Heating element type: Self-regulating PTC resistor

• Overcurrent protection: Electronic thermal overload relay

• Electrical connection: 30 cm supply wire, NLE

• IEC protection class: Class II

• Protection rating: IP20

• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: Anodized aluminum profile

• Mounting: 35mm DIN rail

• Installation position: Best efficiency in a vertical position

• External dimensions: 60x50x27mm

• Weight: 0.11 kg

Heating elements are used to maintain temperature and reduce humidity in control panels, automation cabinets, ATMs, payment terminals, and other electronic devices. Incandescent bulbs were previously used for this purpose; however, it is clear that this method does not guarantee compliance with the stringent modern requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heating elements, which not only provide heat but also ensure safety and a long service life.

All heating devices are equipped with an electronic surface overheating protection system, which further ensures safe operation.

Due to the high demands placed on cabinet heaters, Plastim exercised the utmost care in selecting component suppliers. For example, the supplier of the PTC heaters is the same as Schneider Electric.

This approach to selecting suppliers clearly distinguishes Plastim's high-quality heating devices from cheap Chinese products.

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller. Both devices can be purchased on our website.
