Control cabinet heater PTC 30W, PHT030, Plastim

Online payment by card – After completing your order, you will be redirected to the payment portal. You will receive a payment confirmation via email.

Cash on delivery – You pay the amount according to the payment order directly to the transport company driver.

Bank transfer – You will receive a pro forma invoice by email no later than the next business day. This invoice contains the account number, which you will provide when making the payment.

On account – This payment method is available to partners who have concluded a framework agreement with our company.

If you would like to use one of the last two payment methods, please contact our manager. They will provide you with instructions on how to receive an invoice with or without VAT.

The electrical appliances we supply meet high quality standards, come with a 24-month warranty, and meet all EU requirements. In the event of a complaint, no return shipping fee is charged.

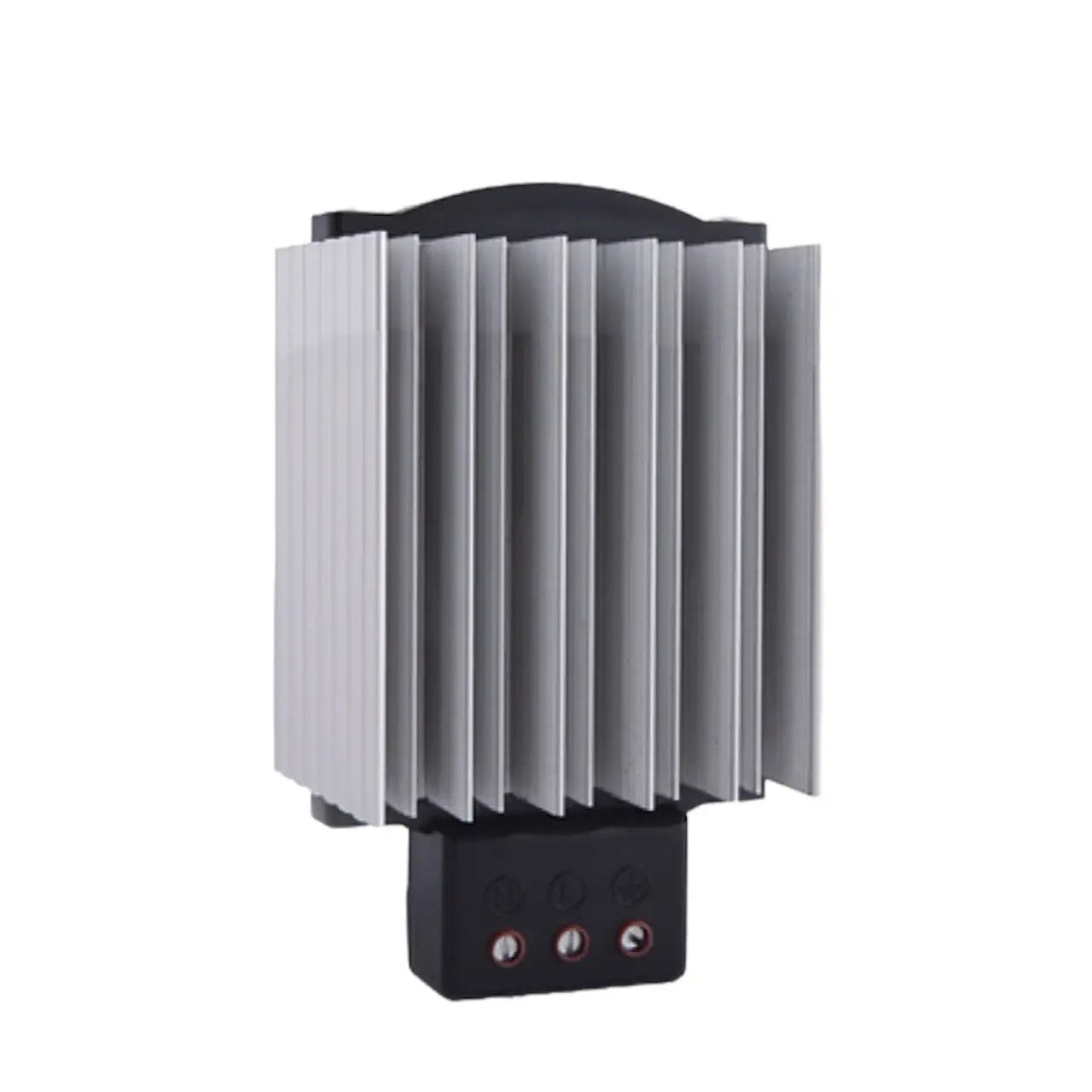

Electric (PTC Body Heater, Post-Tension Heater) cabinet heater with anodized aluminum heat sink and overcurrent protection, for DIN rail mounting with 30 watts, 110-220 volts AC or DC, PHT030, Plastim - made in Turkey.

• Heating power: 30W
• Operating voltage: 100-250V AC/DC
• Maximum current: 2A
• Self-regulating PTC resistor
• Overcurrent protection: Electronic thermal overload relay
• Electrical connection: 3-pole N-L-E terminal
• IEC protection class: Class II
• Protection class: IP20
• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: Aluminum profile, anodized

• Mounting: 35mm DIN rail

• Installation position: Best efficiency in vertical position

• External dimensions: 128x70x59mm

• Weight: 0.41 kg

Heating elements are used to maintain temperature and reduce humidity in switchboards, automation cabinets, ATMs, payment terminals, and other electronic devices. In the past, incandescent lamps were used for these purposes - but it is clear that this method does not ensure compliance with modern stringent requirements for electrical devices and electronics. Nowadays, almost all manufacturers are switching to PTC heating elements, which not only provide heat but also guarantee safety and longevity in operation.

All heating devices are equipped with an electronic surface overheat protection, which additionally ensures safe operation.

Due to the high demands placed on cabinet heaters, Plastim has exercised great care in selecting component suppliers. For example, the supplier of the PTC heaters is the same as Schneider Electric, and the terminal block for the electrical connection of all components is custom-made by the Italian company KORNER. The plastic from which this block is made has a very important property: it remains dimensionally stable when heated and does not deform, and it also does not emit odors, thus not releasing harmful carcinogenic substances into the atmosphere. We agree that this approach in supplier selection positively distinguishes high-quality Plastim heating devices from cheap Chinese counterparts.

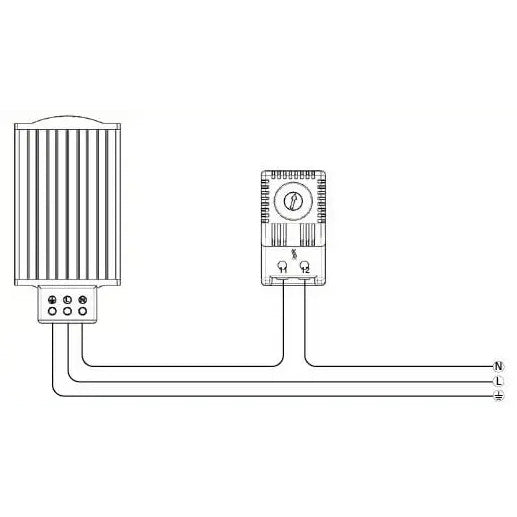

To ensure automatic temperature maintenance with this heating device, you need either a simple bimetal thermostat or a more complex thermostat. Both devices can be purchased on our website:

Link to the thermostat - https://www.pelek.cz/product-page/Termostat-0-60-NC-PTHT

Link to the controllers - https://www.pelek.cz/regul-tory-teploty-a-senzory
