Fan with filter, 100 (140) m3/h, 160x160, 230V 50/60Hz IP54 PTF1500 Plastim

Barcode: PTF1500

Regular price: €39,72
Regular price
Sale price: €39,72
Unit price: per

132 in stock

Product variants

Description
Instructions
Payment methods
Warranty

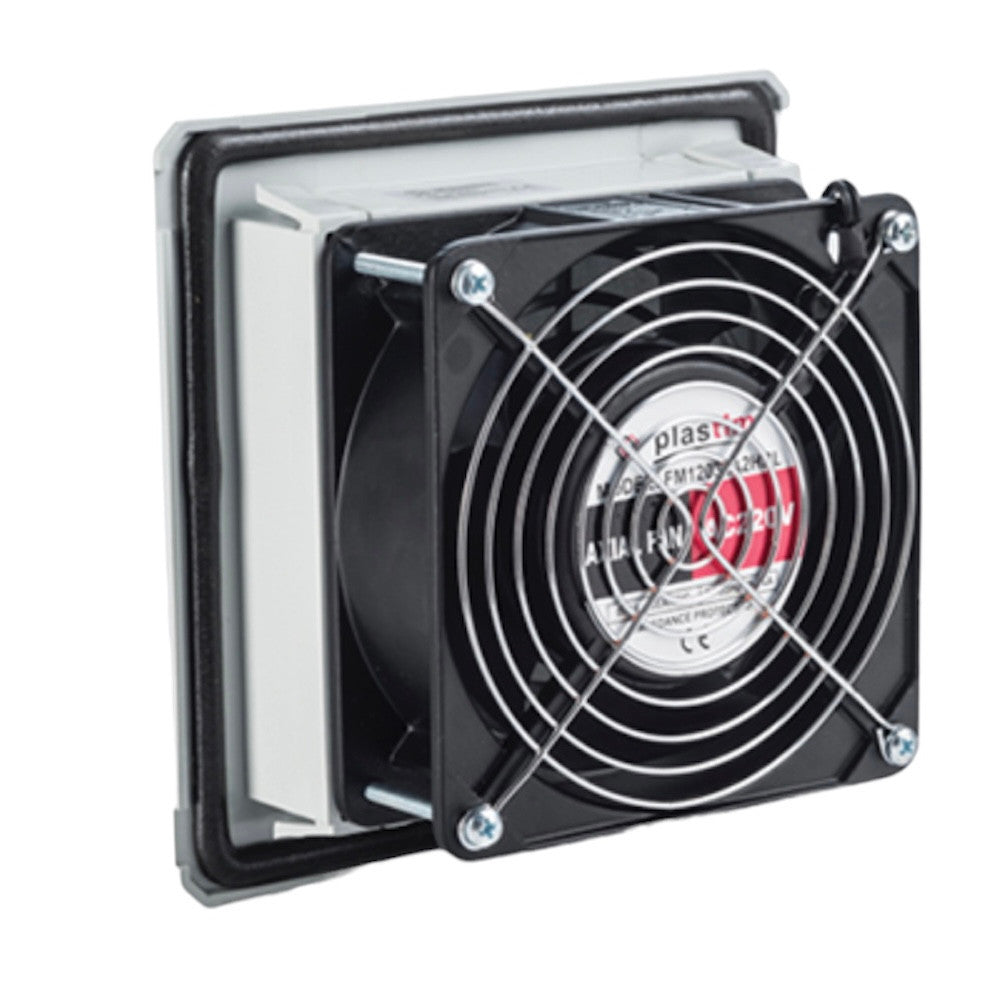

Ventilation grille with fan and filter, size 160x160 mm, for installation in control panels, automation cabinets, ATMs, or gaming terminals. PTF1500, manufacturer: Plastim (Turkey)

For outside air intake in control cabinets, ATMs, payment terminals, gaming machines, automation cabinets, switchboards, and gas stations. Typically installed in the side panels of control cabinets to maintain IP.

External dimensions: 160x160x69 mm
Installation dimensions: 125x125mm
Volume flow: 100 (140) m3/h
Noise level: 42 (46) dB(A)
Bearing: ball bearing
Operating voltage: 220-230VAC, 50/60Hz
Current consumption: 0.14 (0.13) A
Rated power: 26 (23) W
Electrical connection: lead wire
Flow direction: outside to inside (can be changed)
Operating temperature: -10/+70 °C
Protection class: IP54
Plastic: UL94 V0 ABS Flame Retardant
Seal: Polyurethane seal
Color: RAL 7035 (RAL 7032 on request)
Weight: 0.68 kg
Assembly: Quick plug-in

For automatic air exchange and temperature maintenance with this fan, you need either a simple bimetallic thermostat or a more complex temperature controller. Both devices can be purchased on our website.
