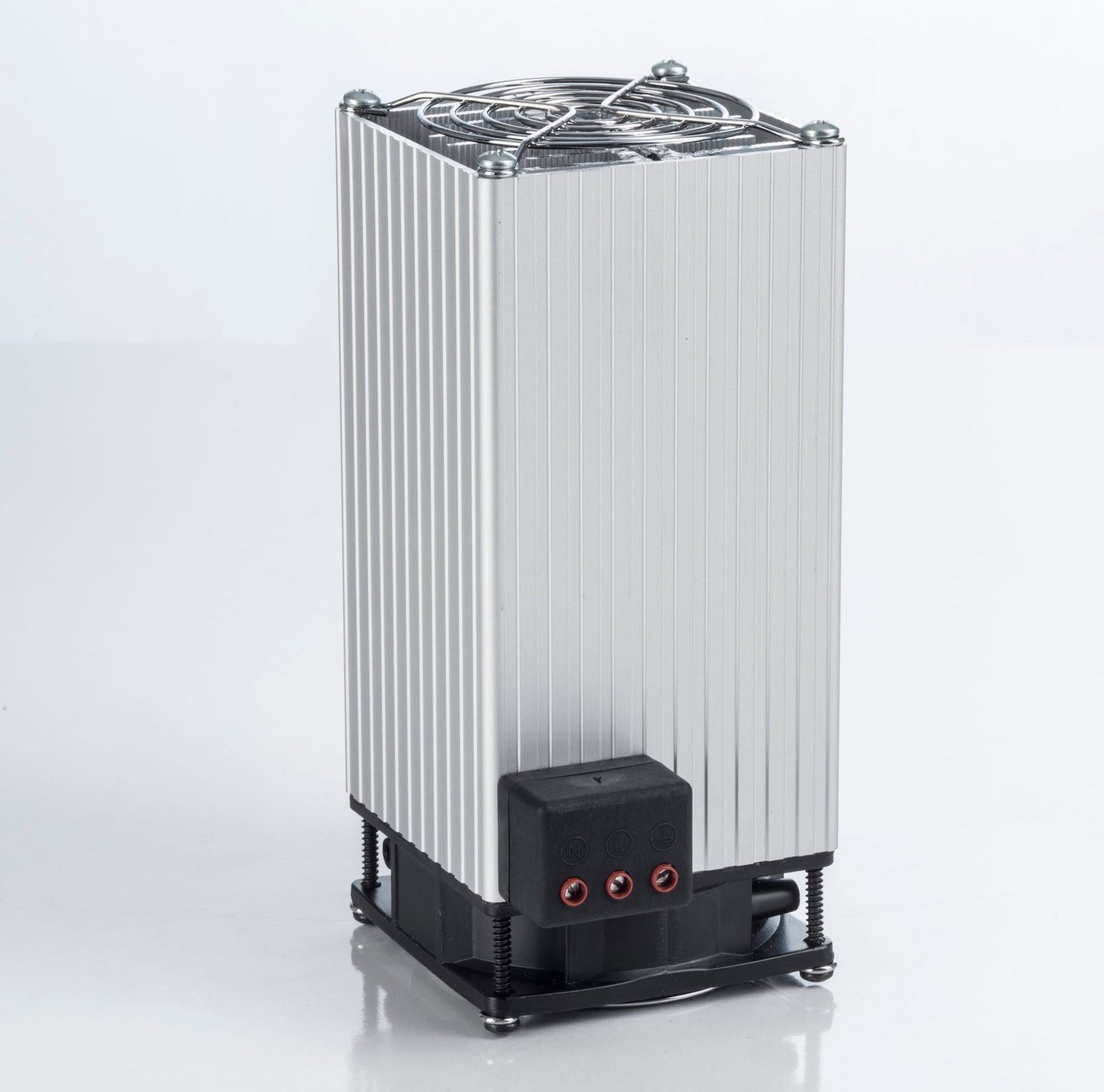

Resistance control cabinet heater with fan 750W, PFHT750, PLASTIM
- Regular price
- €148,36
- Regular price
-
- Sale price
- €148,36
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
- Description
- Payment methods
- Warranty
Electric (resistance heating, storage heating) switch cabinet heater with fan, with anodized aluminum heat sink and overcurrent protection, for DIN rail mounting with power 750 watts, 220/230 volts AC, PFHT750, Plastim - made in Turkey.
-
Heating power: 750W
-
Operating voltage: 220/230V AC, 50/60Hz
-
Maximum current: 3.6 A
-
Type of resistance heater.
-
Axial fan: 80x80x25mm 35m3/h
-
Overcurrent protection: electronic thermal overload relay
-
Electrical connection: 3-pin NLE terminal
-
IEC protection class: Class II
-
Protection class: IP20
-
Operating temperature: -25 / +70 °C
-
Storage temperature: -25 / +70 °C
-
Heatsink: aluminum profile, anodized
-
Mounting: 35mm DIN rail
-
Installation position: Best efficiency in vertical position
-
External dimensions: 232x80x110mm
-
Weight: 1.45 kg
To ensure automatic temperature control with this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller. Both devices can be purchased on our website:
